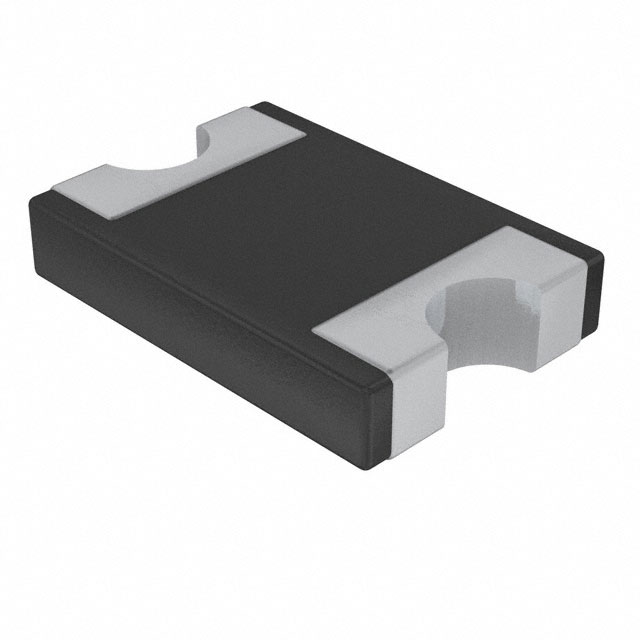

SD2114S040S8R0
DIODE SCHOTTKY 40V 8A 2114Manufacturer: KYOCERA AVX
Categories: Single Diodes
Quality Control: Learn More
Diode 40 V 8A Surface Mount 2114/DO-214AA
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 2-SMD, No Lead |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 8A |
| Supplier Device Package | 2114/DO-214AA |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 8 A |
| Current - Reverse Leakage @ Vr | 500 µA @ 40 V |
Request a Quote
