NSHS05A065

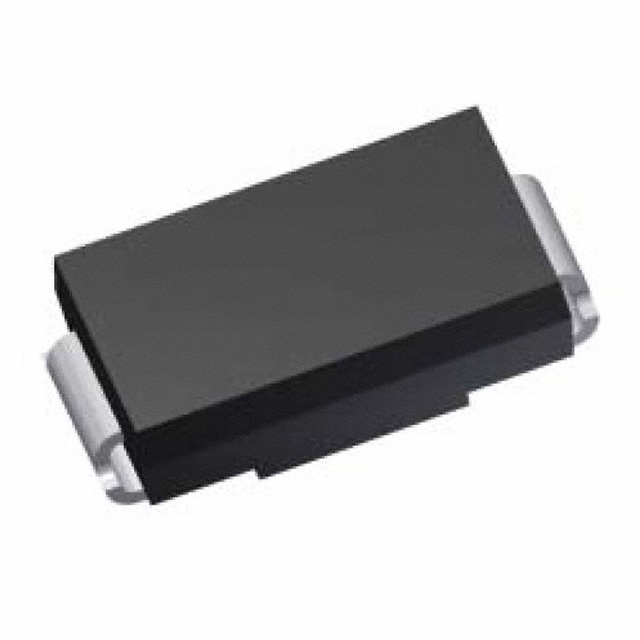

DIODE SCHOTTKY 65V 5A NSMCManufacturer: KYOCERA AVX
Categories: Single Diodes
Quality Control: Learn More
KYOCERA AVX NSHS05A065 is a Schottky diode designed for demanding applications. This component features a 5A average rectified current (Io) and a maximum DC reverse voltage (Vr) of 65V. The forward voltage drop (Vf) is rated at a maximum of 640mV at 5A, indicative of its efficient power handling. Reverse leakage current is a minimal 100 µA at 65V.
The NSHS05A065 is housed in a compact DO-214AB, nSMC surface mount package, ideal for space-constrained designs. Its operating junction temperature range of -40°C to 150°C ensures reliability across various environmental conditions. The diode's fast recovery time contributes to efficient switching performance. This component is commonly utilized in power supply circuits, automotive electronics, and industrial control systems where high efficiency and robust performance are critical. The product is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AB, SMC |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 5A |
| Supplier Device Package | nSMC |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 65 V |
| Voltage - Forward (Vf) (Max) @ If | 640 mV @ 5 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 65 V |
