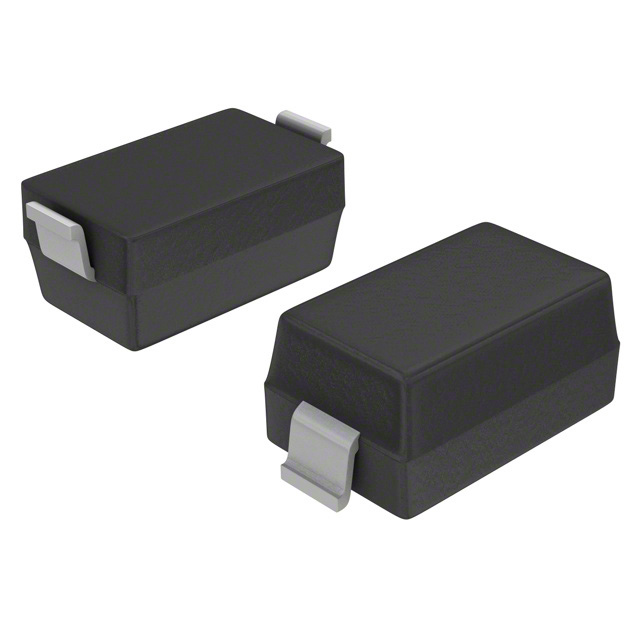

EP04RA60
DIODE GEN PURP 600V 400MA SOD123Manufacturer: KYOCERA AVX
Categories: Single Diodes
Quality Control: Learn More
KYOCERA AVX EP04RA60 is a general-purpose diode designed for efficient rectification. This component features a maximum DC reverse voltage (Vr) of 600 V and an average rectified forward current (Io) of 400 mA. The forward voltage drop (Vf) is 1.32 V at 400 mA. With a reverse leakage current of 10 µA at 600 V, it offers low leakage performance. The device operates across a junction temperature range of -40°C to 150°C. Its fast recovery time (trr) of 40 ns categorizes it within the fast recovery diode designation. The EP04RA60 is housed in a compact SOD-123 surface mount package, supplied on tape and reel. This diode is suitable for applications in power supply circuits, general rectification, and switching applications across various industries including consumer electronics and industrial control systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOD-123 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 40 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 400mA |
| Supplier Device Package | SOD-123 |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.32 V @ 400 mA |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
