EC30QSA065
DIODE SCHOTTKY 65V 3A DO214ACManufacturer: KYOCERA AVX
Categories: Single Diodes
Quality Control: Learn More

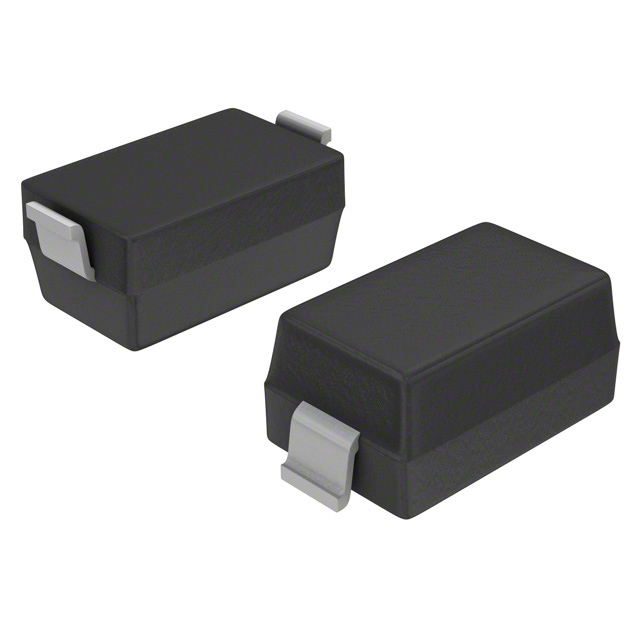

KYOCERA AVX, Schottky Diode, 65V, 3A, DO-214AC (SMA) package. This component, part number EC30QSA065, offers a 610mV maximum forward voltage at 3A and a reverse leakage of 300µA at 65V. Designed for efficient power management, it features a fast recovery time. Operating temperature range is -40°C to 150°C. Typically utilized in automotive, industrial, and consumer electronics applications requiring robust rectification and low forward voltage drop. Supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AC, SMA |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 3A |
| Supplier Device Package | DO-214AC (SMA) |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 65 V |
| Voltage - Forward (Vf) (Max) @ If | 610 mV @ 3 A |
| Current - Reverse Leakage @ Vr | 300 µA @ 65 V |
