EC30QSA045
DIODE SCHOTTKY 45V 3A DO214ACManufacturer: KYOCERA AVX
Categories: Single Diodes
Quality Control: Learn More

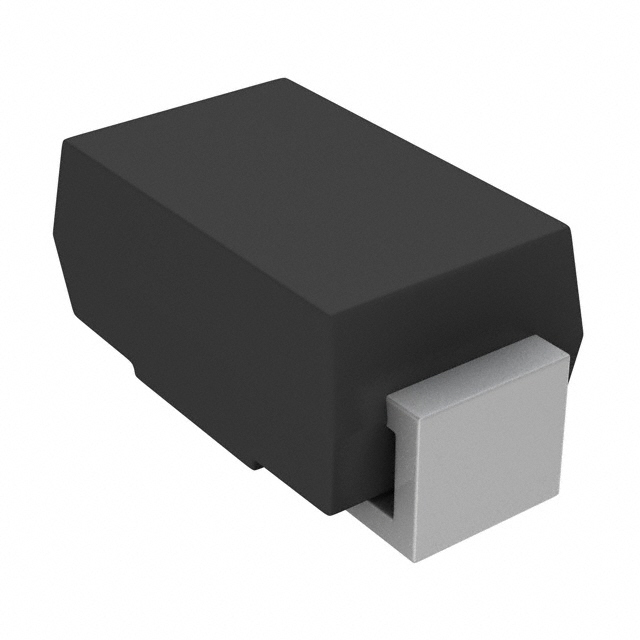

KYOCERA AVX EC30QSA045 is a Schottky diode with a 45V reverse voltage rating and a 3A average rectified current (Io). This component features a low forward voltage (Vf) of 550mV at 3A and a reverse leakage current of 300µA at 45V. The device is housed in a DO-214AC (SMA) surface-mount package and is qualified to AEC-Q101 standards, making it suitable for automotive applications. Operating within a junction temperature range of -40°C to 150°C, this diode is designed for efficient power management in demanding environments. It is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AC, SMA |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 3A |
| Supplier Device Package | DO-214AC (SMA) |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 3 A |
| Current - Reverse Leakage @ Vr | 300 µA @ 45 V |
| Qualification | AEC-Q101 |
