PDT15116

THYRISTOR MODULE PHASE LEG T+T 1

Manufacturer: KYOCERA AVX

Categories: SCRs - Modules

Quality Control: Learn More

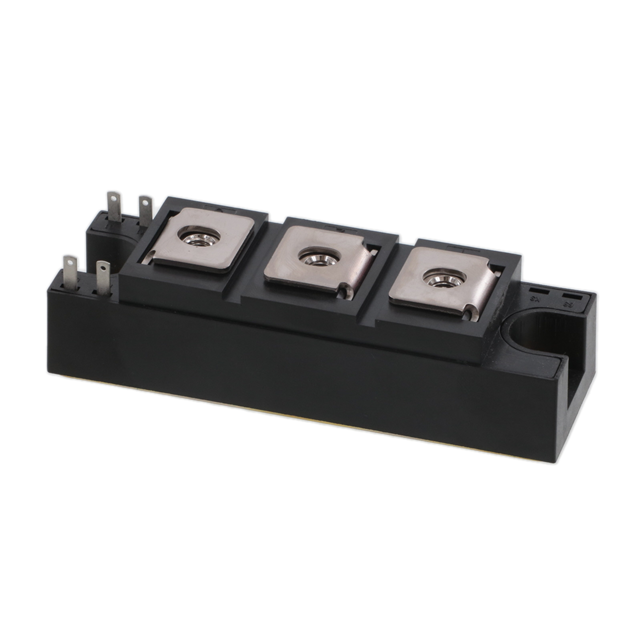

KYOCERA AVX PDT15116, a THYRISTOR MODULE PHASE LEG T+T 1, features a series connection of two SCRs within a chassis mount module. This component offers a 1.6 kV blocking voltage and a significant 235 A RMS current handling capability, suitable for demanding power control applications. The device exhibits a 150 A average forward current and a substantial 3200 A surge current rating at 50 Hz. Key triggering parameters include a maximum gate trigger current (Igt) of 150 mA and a maximum gate trigger voltage (Vgt) of 3 V. The holding current (Ih) is specified at a maximum of 80 mA. Operating within a temperature range of -40°C to 125°C (TJ), this module is commonly utilized in industrial motor control, power supplies, and welding equipment.

Additional Information

Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:
Technical Details:
PackagingBulk
Package / CaseModule
Mounting TypeChassis Mount
Operating Temperature-40°C ~ 125°C (TJ)
StructureSeries Connection - All SCRs
Current - Hold (Ih) (Max)80 mA
Current - Gate Trigger (Igt) (Max)150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)3200A @ 50Hz
Number of SCRs, Diodes2 SCRs
Current - On State (It (AV)) (Max)150 A
Voltage - Gate Trigger (Vgt) (Max)3 V
Current - On State (It (RMS)) (Max)235 A
Voltage - Off State1.6 kV
