ND03Q00683K--
THERMISTOR NTC 68KOHM 4300K DISCManufacturer: KYOCERA AVX
Categories: NTC Thermistors
Quality Control: Learn More
KYOCERA AVX NTC thermistor, part of the ND03 series, is a 68kO device with a ±10% resistance tolerance and a B25/85 value of 4300K. This disc-style thermistor features a diameter of 3.5mm and a width of 3.0mm, with lead wires extending 1.38 inches (35.00mm). Designed for through-hole mounting, it operates within a temperature range of -55°C to 150°C and has a maximum power rating of 250 mW. Qualified to AEC-Q200 standards, this component is suitable for automotive applications.
Additional Information
Series: ND03RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Disc, 3.5mm Dia x 3.0mm W |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C |
| B0/50 | - |
| B25/50 | - |
| B25/85 | 4300K |
| B25/100 | - |
| B Value Tolerance | ±2% |
| Resistance in Ohms @ 25°C | 68k |
| Resistance Tolerance | ±10% |
| B25/75 | - |
| Length - Lead Wire | 1.38"" (35.00mm) |
| Grade | Automotive |
| Power - Max | 250 mW |
| Qualification | AEC-Q200 |
Request a Quote
Clients Also Buy

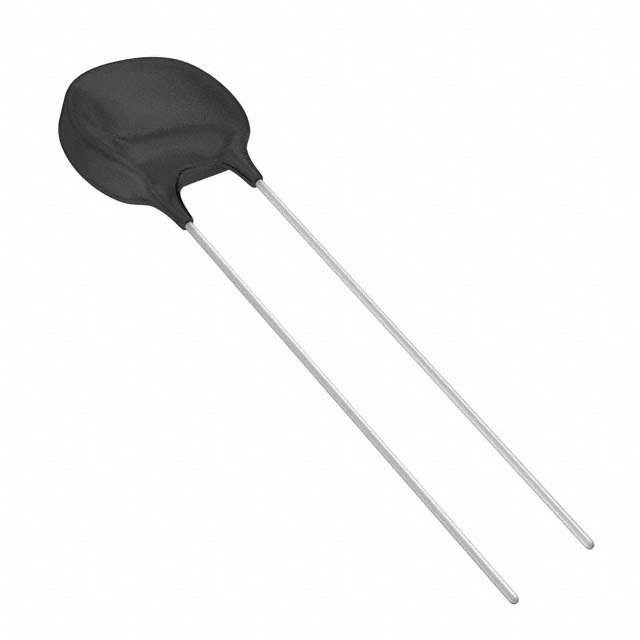

ND03I00331K--
