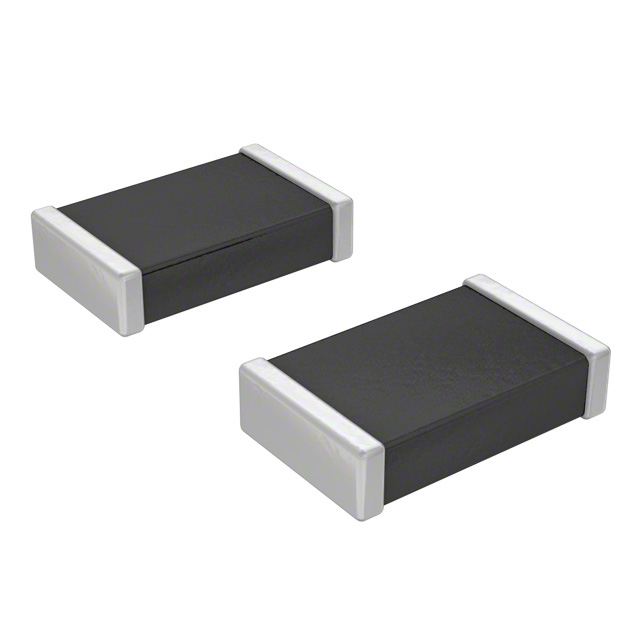

NB12J00472JBB
THERMISTOR NTC 4.7KOHM 0805Manufacturer: KYOCERA AVX
Categories: NTC Thermistors
Quality Control: Learn More
The KYOCERA AVX NB12 series NTC thermistor, part number NB12J00472JBB, offers a 4.7kO resistance at 25°C with a ±5% resistance tolerance. This device features a B25/85 value of 3480K and a B value tolerance of ±3%. Rated for 120 mW maximum power dissipation, it operates across a wide temperature range of -55°C to 150°C. The component is housed in an 0805 (2012 Metric) surface-mount package and is supplied on tape and reel. Qualified to AEC-Q200 standards, this thermistor is suitable for automotive applications.
Additional Information
Series: NB12RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C |
| B0/50 | - |
| B25/50 | - |
| B25/85 | 3480K |
| B25/100 | - |
| B Value Tolerance | ±3% |
| Resistance in Ohms @ 25°C | 4.7k |
| Resistance Tolerance | ±5% |
| B25/75 | - |
| Length - Lead Wire | - |
| Grade | Automotive |
| Power - Max | 120 mW |
| Qualification | AEC-Q200 |
