L08058R2DEWTR\500
FIXED IND 8.2NH 750MA 120MOHM SMManufacturer: KYOCERA AVX
Categories: Fixed Inductors
Quality Control: Learn More
8.2 nH Unshielded Thin Film Inductor 750 mA 120mOhm Max 0805 (2012 Metric)
Additional Information
Series: Accu-L®RoHS Status: RoHS non-compliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±0.5nH |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.083"" L x 0.059"" W (2.11mm x 1.50mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Thin Film |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 120mOhm Max |
| Q @ Freq | 43 @ 450MHz |
| Frequency - Self Resonant | 3.5GHz |
| Ratings | - |
| Current - Saturation (Isat) | - |
| Material - Core | Non-Magnetic |
| Inductance Frequency - Test | 450 MHz |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.041"" (1.04mm) |
| Inductance | 8.2 nH |
| Current Rating (Amps) | 750 mA |
Request a Quote
Clients Also Buy

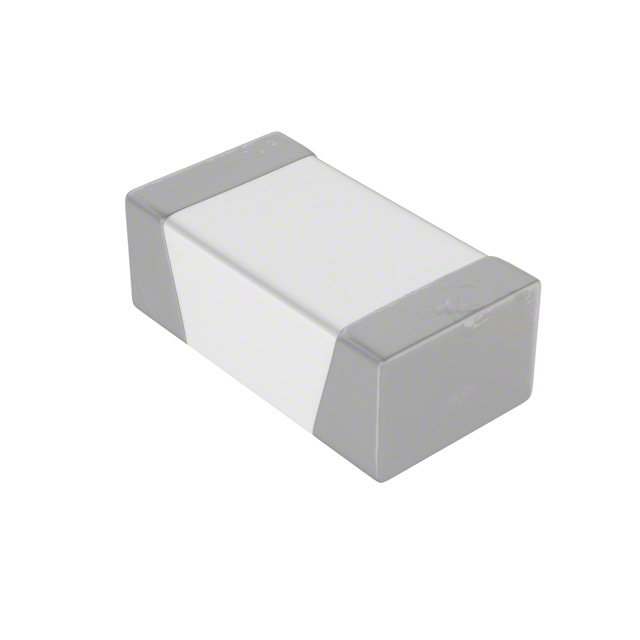

L02013R3BHSTR
