W3F45C4718AT1A
CAP FEEDTHRU 470PF 50V 1206Manufacturer: KYOCERA AVX
Categories: Feed Through Capacitors
Quality Control: Learn More

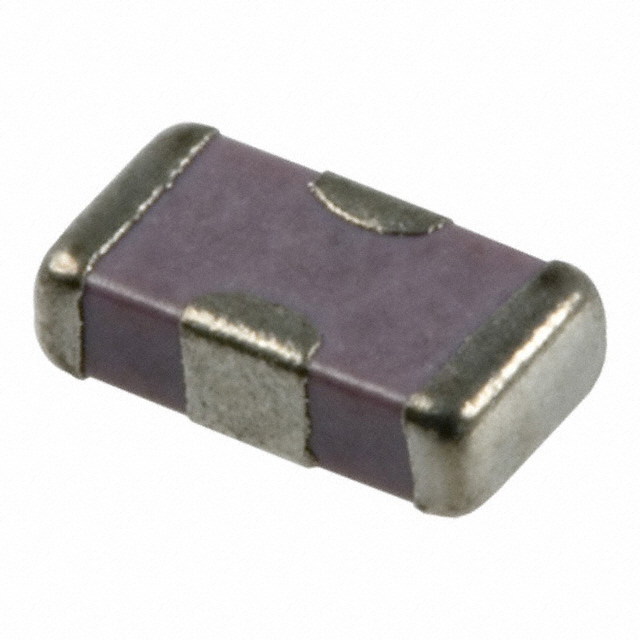

KYOCERA AVX W3F4 470 pF feed-through capacitor, part number W3F45C4718AT1A. This component features a 50V voltage rating and a 300 mA current capability. With a maximum DC resistance (DCR) of 600mOhm, it is designed for efficient signal filtering. The capacitor utilizes X7R dielectric material and operates across a temperature range of -55°C to 125°C. Its 1206 (3216 Metric) package with 4 PC pads facilitates surface mounting. Dimensions are 0.128" L x 0.063" W (3.25mm x 1.60mm), with a maximum height of 0.048" (1.22mm). The W3F4 series is commonly employed in automotive and industrial applications requiring robust filtering solutions. Supplied in tape and reel packaging.
Additional Information
Series: W3F4RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | -20%, +50% |
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 50V |
| Package / Case | 1206 (3216 Metric), 4 PC Pad |
| Temperature Coefficient | X7R |
| Size / Dimension | 0.128"" L x 0.063"" W (3.25mm x 1.60mm) |
| Mounting Type | Surface Mount |
| Thread Size | - |
| Operating Temperature | -55°C ~ 125°C |
| Insertion Loss | - |
| Ratings | - |
| Height (Max) | 0.048"" (1.22mm) |
| DC Resistance (DCR) (Max) | 600mOhm |
| Capacitance | 470 pF |
| Current | 300 mA |
