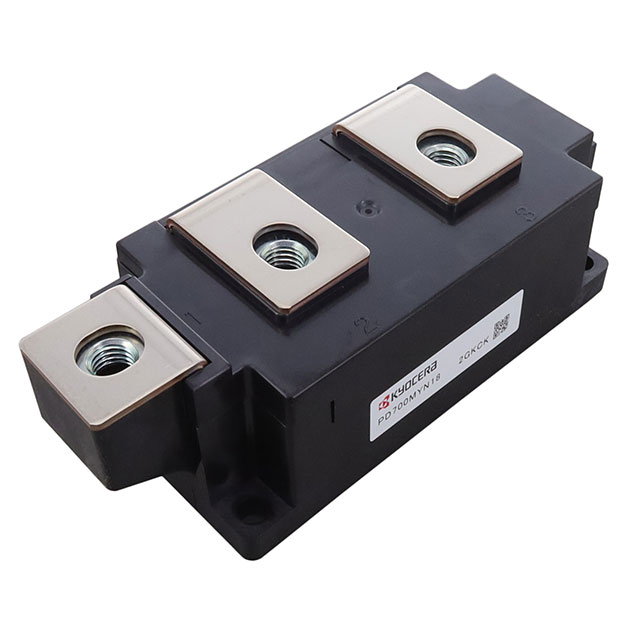

PD700MYN18
DIODE MODULE GP 1800V 700AManufacturer: KYOCERA AVX
Categories: Diode Arrays
Quality Control: Learn More
Diode Array 1 Pair Series Connection 1800 V 700A Chassis Mount Module
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 700A |
| Supplier Device Package | Module |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 1800 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 2000 A |
| Current - Reverse Leakage @ Vr | 20 mA @ 1800 V |
