SV13CC101JAR
CAP CER 100PF 630V X7R RADIALManufacturer: KYOCERA AVX
Categories: Ceramic Capacitors
Quality Control: Learn More
KYOCERA AVX SV Series SV13CC101JAR is a radial ceramic capacitor rated at 630V with a capacitance of 100 pF and a tight tolerance of ±5%. This component features an X7R dielectric, offering stable performance across a wide operating temperature range of -55°C to 125°C. The capacitor has a lead spacing of 0.200" (5.08mm) and a seated height of 0.360" (9.14mm), with overall dimensions of 0.300" L x 0.200" W (7.62mm x 5.08mm). Its high voltage rating and robust dielectric make it suitable for general-purpose applications in sectors such as industrial, automotive, and telecommunications. The SV13CC101JAR is supplied in bulk packaging for efficient integration into manufacturing processes.
Additional Information
Series: SVRoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Lead Style | Straight |
| Features | High Voltage |
| Packaging | Bulk |
| Voltage - Rated | 630V |
| Package / Case | Radial |
| Temperature Coefficient | X7R |
| Size / Dimension | 0.300"" L x 0.200"" W (7.62mm x 5.08mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Applications | General Purpose |
| Lead Spacing | 0.200"" (5.08mm) |
| Ratings | - |
| Height - Seated (Max) | 0.360"" (9.14mm) |
| Thickness (Max) | - |
| Capacitance | 100 pF |
Request a Quote
Clients Also Buy
SV01AC103KAR
CAP CER 10000PF 1KV X7R RADIAL

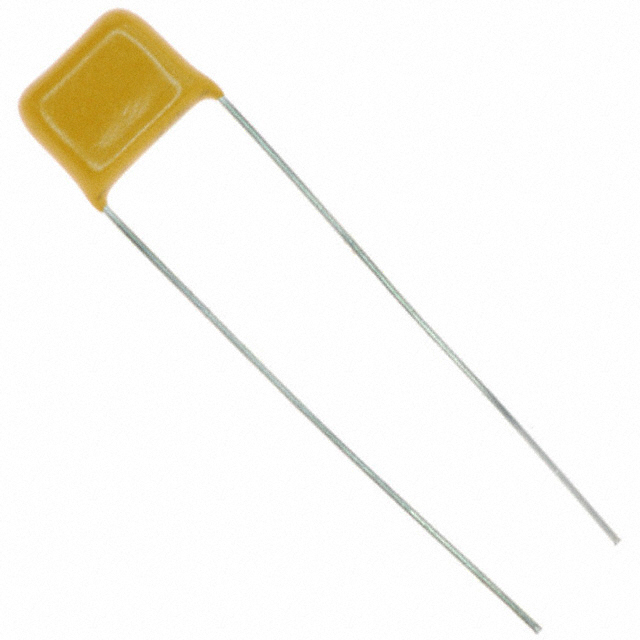

SV05AC224KAA
