ST205C276MAL03
CAP CER 27UF 50V X7R SMDManufacturer: KYOCERA AVX
Categories: Ceramic Capacitors
Quality Control: Learn More

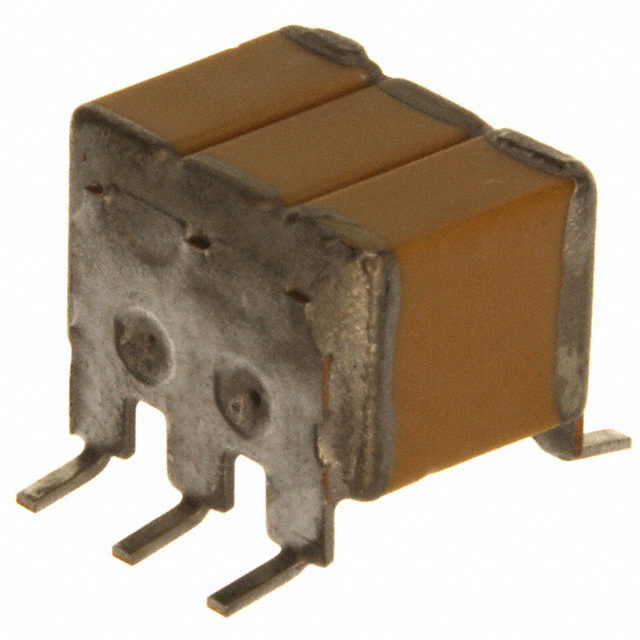

The KYOCERA AVX ST205C276MAL03 is a 27 µF ±20% 50V X7R dielectric capacitor from the TurboCap™ series. This stacked MLCC features low Equivalent Series Inductance (ESL) due to its stacked construction. The component is surface mountable with an L-Lead configuration, measuring 0.325" L x 0.300" W (8.26mm x 7.62mm) and a maximum thickness of 0.220" (5.59mm). Operating across a temperature range of -55°C to 125°C, this capacitor is suitable for applications such as SMPS filtering, bypass, and decoupling in various electronic systems. It is supplied in Bulk packaging.
Additional Information
Series: TurboCap™RoHS Status: RoHS non-compliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Lead Style | L-Lead |
| Features | Low ESL (Stacked) |
| Packaging | Bulk |
| Voltage - Rated | 50V |
| Package / Case | Stacked SMD, 6 L-Lead |
| Temperature Coefficient | X7R |
| Size / Dimension | 0.325"" L x 0.300"" W (8.26mm x 7.62mm) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature | -55°C ~ 125°C |
| Applications | SMPS Filtering, Bypass, Decoupling |
| Lead Spacing | - |
| Ratings | - |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.220"" (5.59mm) |
| Capacitance | 27 µF |
