ST103C826MAK02
CAP CER 82UF 25V X7R 4-SMDManufacturer: KYOCERA AVX
Categories: Ceramic Capacitors
Quality Control: Learn More

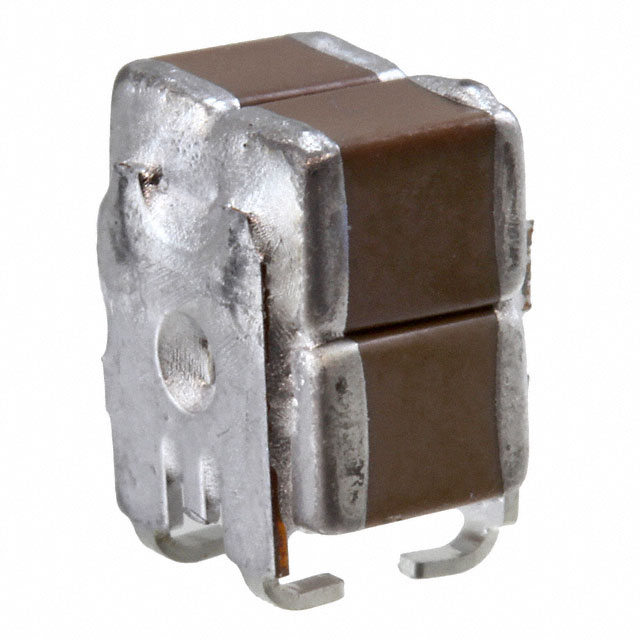

KYOCERA AVX ST103C826MAK02 is an 82 µF ±20% 25V ceramic capacitor from the Mini-TurboCap™ series. This stacked SMD component features X7R dielectric material and a low Equivalent Series Inductance (ESL) due to its stacked construction. The capacitor is designed for surface mount applications with a 4 J-Lead package, offering dimensions of 0.210"" L x 0.190"" W (5.33mm x 4.83mm) and a maximum thickness of 0.220"" (5.59mm). It operates within a temperature range of -55°C to 125°C. This component is suitable for applications such as SMPS filtering, bypass, and decoupling.
Additional Information
Series: Mini-TurboCap™RoHS Status: RoHS non-compliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Lead Style | J-Lead |
| Features | Low ESL (Stacked) |
| Packaging | Bulk |
| Voltage - Rated | 25V |
| Package / Case | Stacked SMD, 4 J-Lead |
| Temperature Coefficient | X7R |
| Size / Dimension | 0.210"" L x 0.190"" W (5.33mm x 4.83mm) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature | -55°C ~ 125°C |
| Applications | SMPS Filtering, Bypass, Decoupling |
| Lead Spacing | 0.150"" (3.80mm) |
| Ratings | - |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.220"" (5.59mm) |
| Capacitance | 82 µF |
