SMX43C106KAN360
CAP CER 10UF 25V X7R 8DIPManufacturer: KYOCERA AVX
Categories: Ceramic Capacitors
Quality Control: Learn More
KYOCERA AVX SMX Series ceramic capacitor, part number SMX43C106KAN360, offers 10 µF capacitance with a ±10% tolerance and a 25V voltage rating. This component features X7R (VHT) dielectric material for stable performance across a wide operating temperature range of -55°C to 200°C. Designed with a stacked DIP, 8-lead package, it provides low Equivalent Series Inductance (ESL) and is suitable for through-hole mounting. Its dimensions are 0.402" L x 0.441" W, with a seated height of 0.360". This capacitor is utilized in applications such as Switch Mode Power Supplies (SMPS) for filtering.
Additional Information
Series: SMXRoHS Status: RoHS non-compliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±10% |
| Lead Style | - |
| Features | Low ESL (Stacked), High Temperature |
| Packaging | Bulk |
| Voltage - Rated | 25V |
| Package / Case | Stacked DIP, 8 Lead |
| Temperature Coefficient | X7R (VHT) |
| Size / Dimension | 0.402"" L x 0.441"" W (10.20mm x 11.20mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 200°C |
| Applications | SMPS Filtering |
| Lead Spacing | 0.400"" (10.16mm) |
| Ratings | - |
| Height - Seated (Max) | 0.360"" (9.14mm) |
| Thickness (Max) | - |
| Capacitance | 10 µF |
Request a Quote
Clients Also Buy

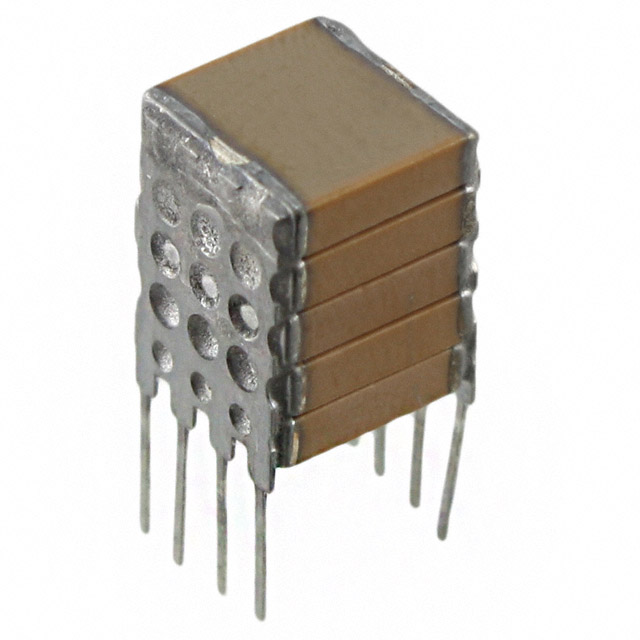

SMX45C505KAN360
CAP CER 5UF 50V X7R DIP

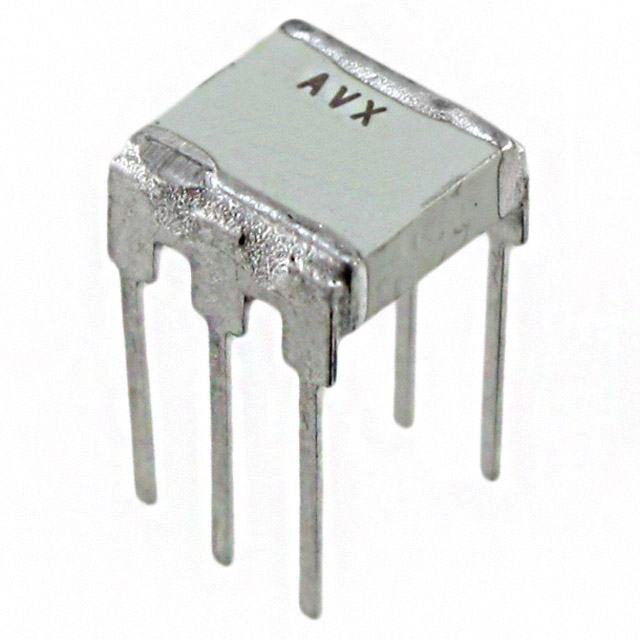

SMX52A102KAN120
CAP CER 1000PF 200V NP0 6-DIP

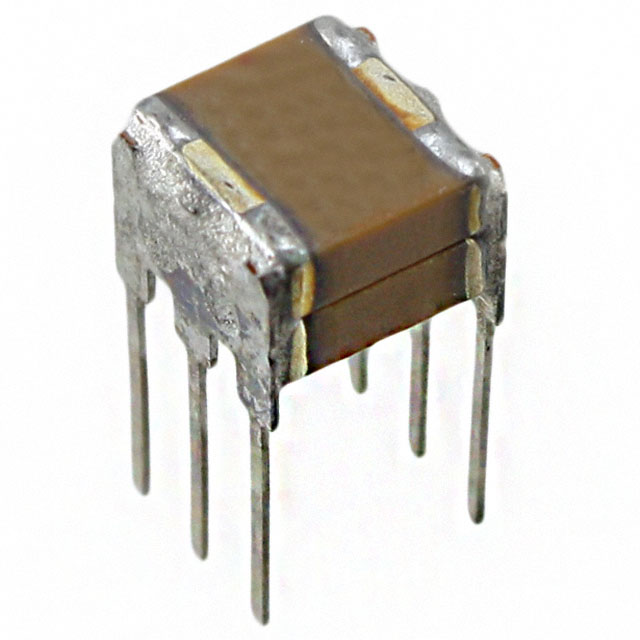

SMX53A104KAN240
