M39014/02-1276
CAP CER 0.22UF 50V BX RADIALManufacturer: KYOCERA AVX
Categories: Ceramic Capacitors
Quality Control: Learn More

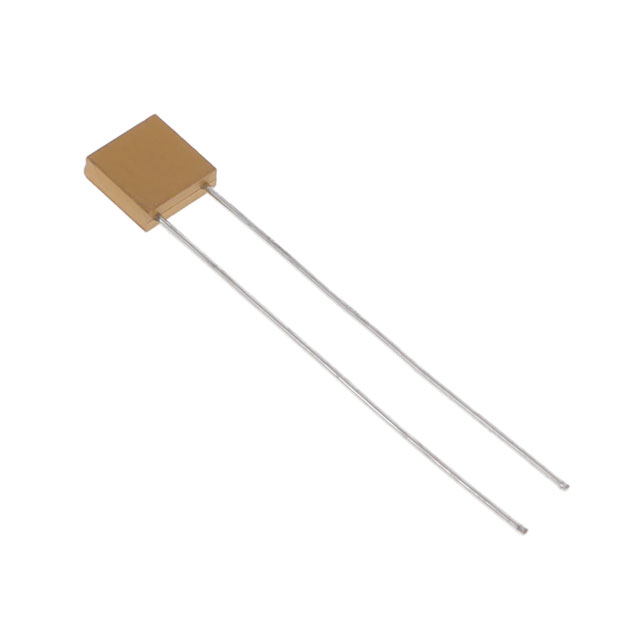

KYOCERA AVX M39014-02-1276 is a MIL-PRF-39014 compliant ceramic capacitor from the CKR06 series. This radial-leaded component offers a capacitance of 0.22 µF with a ±10% tolerance and a 50V rating. Designed for high-reliability applications, it features a BX temperature coefficient and operates across a temperature range of -55°C to 125°C. The capacitor has a seated height of 0.300" (7.62mm) and a lead spacing of 0.200" (5.08mm). Its dimensions are 0.290" L x 0.090" W (7.37mm x 2.29mm). This component is suitable for through-hole mounting and is supplied in bulk packaging. It is commonly utilized in defense and aerospace industries.
Additional Information
Series: Military, MIL-PRF-39014, CKR06RoHS Status: RoHS non-compliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±10% |
| Lead Style | Straight |
| Features | - |
| Packaging | Bulk |
| Voltage - Rated | 50V |
| Package / Case | Radial |
| Temperature Coefficient | BX |
| Size / Dimension | 0.290"" L x 0.090"" W (7.37mm x 2.29mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Applications | High Reliability |
| Lead Spacing | 0.200"" (5.08mm) |
| Ratings | - |
| Height - Seated (Max) | 0.300"" (7.62mm) |
| Thickness (Max) | - |
| Failure Rate | P (0.1%) |
| Capacitance | 0.22 µF |
