M39014/01-1317

CAP CER 1000PF 200V BX RADIAL

Quality Control: Learn More

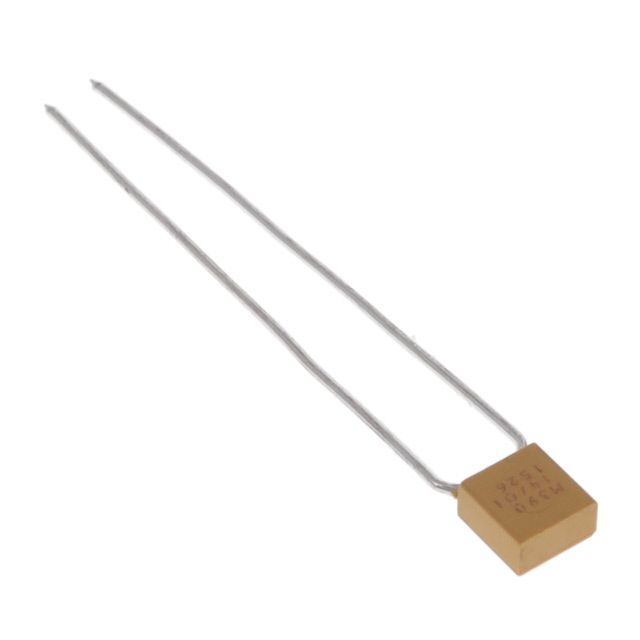

KYOCERA AVX M39014-01-1317 is a Military, MIL-PRF-39014, CKR05 series ceramic capacitor with a capacitance of 1000 pF and a tolerance of ±10%. This radial component is rated for 200V and features a BX temperature characteristic, ensuring stable performance across its operating temperature range of -55°C to 125°C. Designed for high-reliability applications, it has a 0.200"" (5.08mm) lead spacing and is supplied in bulk packaging. Its dimensions are 0.190"" L x 0.090"" W (4.83mm x 2.29mm), with a seated height not exceeding 0.200"" (5.08mm). This capacitor is suitable for demanding applications in aerospace and defense.

Additional Information

Series: Military, MIL-PRF-39014, CKR05RoHS Status: RoHS non-compliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:

Download Free CAD Model:

Technical Details:

Tolerance	±10%
Lead Style	Formed Leads
Features	-
Packaging	Bulk
Voltage - Rated	200V
Package / Case	Radial
Temperature Coefficient	BX
Size / Dimension	0.190"" L x 0.090"" W (4.83mm x 2.29mm)
Mounting Type	Through Hole
Operating Temperature	-55°C ~ 125°C
Applications	High Reliability
Lead Spacing	0.200"" (5.08mm)
Ratings	-
Height - Seated (Max)	0.200"" (5.08mm)
Thickness (Max)	-
Failure Rate	R (0.01%)
Capacitance	1000 pF
