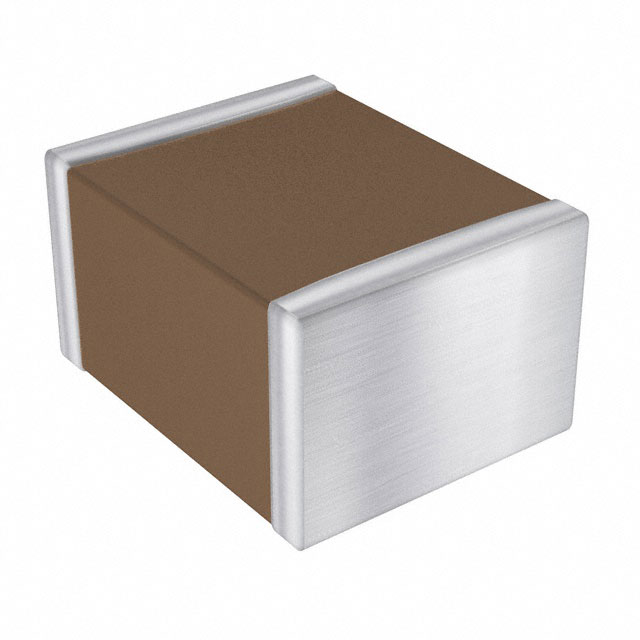

LD10ZD226MAB2A
CAP CER 22UF 10V X5R 1210Manufacturer: KYOCERA AVX
Categories: Ceramic Capacitors
Quality Control: Learn More
The KYOCERA AVX LD Series LD10ZD226MAB2A is a 22 µF ±20% 10V X5R ceramic capacitor in a 1210 (3225 Metric) surface mount package. This MLCC component offers a robust operating temperature range of -55°C to 85°C. Its dimensions are 0.126" L x 0.098" W (3.20mm x 2.50mm) with a maximum thickness of 0.070" (1.78mm). The capacitor is supplied on tape and reel. This component is suitable for general-purpose applications across various industries including automotive and consumer electronics where stable capacitance is required over temperature variations.
Additional Information
Series: LDRoHS Status: RoHS non-compliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Lead Style | - |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 10V |
| Package / Case | 1210 (3225 Metric) |
| Temperature Coefficient | X5R |
| Size / Dimension | 0.126"" L x 0.098"" W (3.20mm x 2.50mm) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature | -55°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.070"" (1.78mm) |
| Capacitance | 22 µF |
