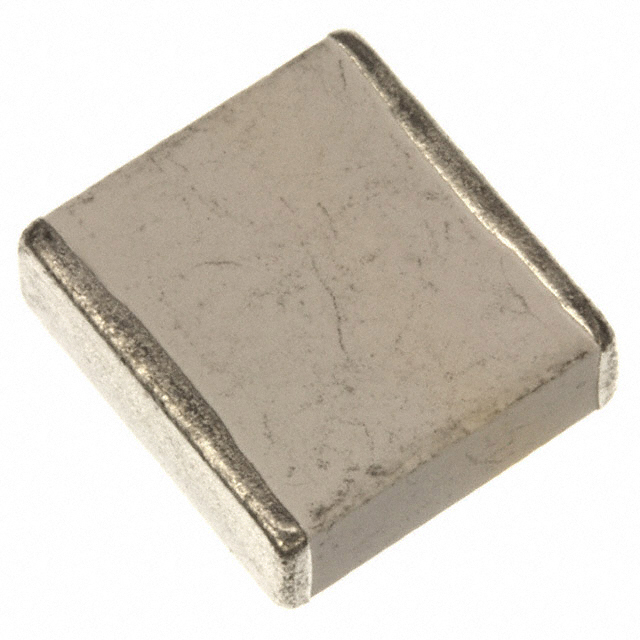

HQCEMM2R0BAH6A
CAP CER 2PF 7.2KV P90 3838Manufacturer: KYOCERA AVX
Categories: Ceramic Capacitors
Quality Control: Learn More
KYOCERA AVX Hi-Q® HQCEMM2R0BAH6A is a 2 pF ±0.1pF surface mount ceramic capacitor designed for high-frequency applications. This MLCC features a P90 temperature characteristic and a 7.2kV voltage rating, making it suitable for demanding RF and microwave circuits. Its 3838 (9797 Metric) package measures 0.380" L x 0.380" W with a maximum thickness of 0.170". The component offers high Q, low loss, and ultra-low ESR, ensuring excellent performance in high-voltage operation. This capacitor is utilized in industries such as telecommunications and industrial electronics where reliable high-frequency power handling is critical.
Additional Information
Series: Hi-Q®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Tolerance | ±0.1pF |
| Lead Style | - |
| Features | High Q, Low Loss, Ultra Low ESR, High Voltage |
| Packaging | Tray |
| Voltage - Rated | 7200V (7.2kV) |
| Package / Case | 3838 (9797 Metric) |
| Temperature Coefficient | P90 |
| Size / Dimension | 0.380"" L x 0.380"" W (9.65mm x 9.65mm) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature | -55°C ~ 125°C |
| Applications | RF, Microwave, High Frequency |
| Lead Spacing | - |
| Ratings | - |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.170"" (4.32mm) |
| Capacitance | 2 pF |
Request a Quote
Clients Also Buy

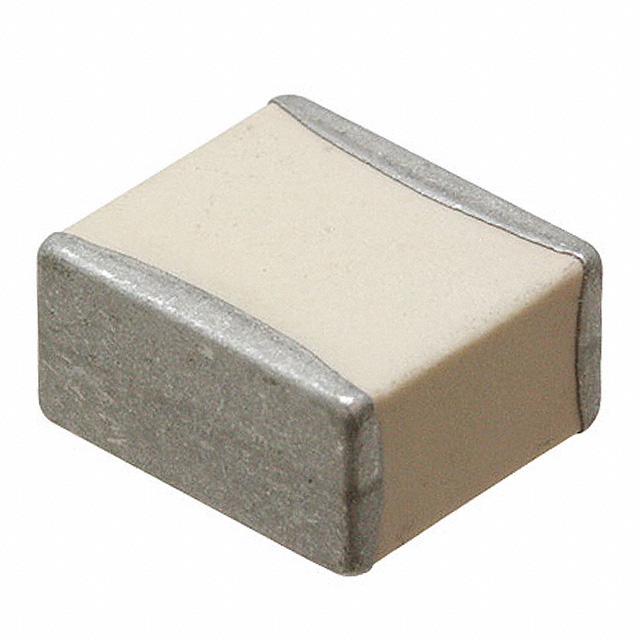

HQCCWA3R3DAT6A
