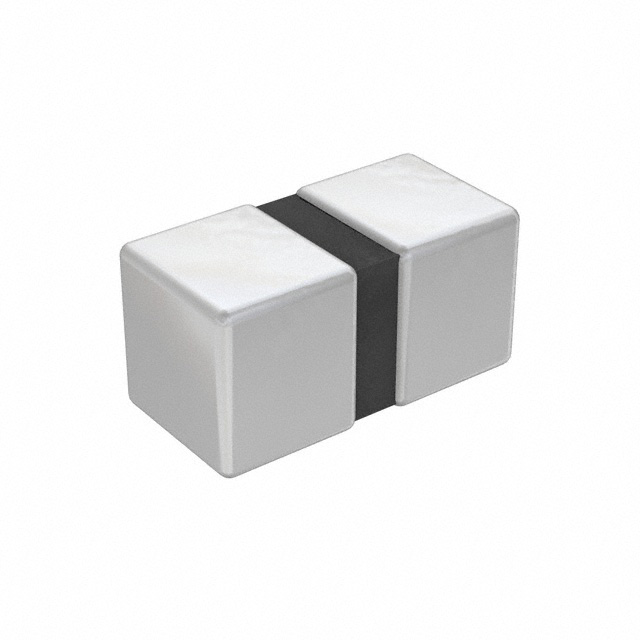

GX01ZD103PATD
CAP CER 10000PF 10V X5R 0201Manufacturer: KYOCERA AVX
Categories: Ceramic Capacitors
Quality Control: Learn More
KYOCERA AVX GX01 Series ceramic capacitor, part number GX01ZD103PATD. This MLCC features a capacitance of 10000 pF with a tight tolerance of 0%, +100% and a rated voltage of 10V. The temperature coefficient is X5R, suitable for operation between -55°C and 85°C. Packaged in a compact 0201 (0603 Metric) case with dimensions of 0.023" L x 0.012" W (0.58mm x 0.30mm) and a maximum thickness of 0.013" (0.33mm). Supplied on Tape & Reel (TR) for automated assembly. This component is utilized in general-purpose applications across various electronic industries.
Additional Information
Series: GX01RoHS Status: ROHS3 CompliantManufacturer Lead Time: 99 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | 0%, +100% |
| Lead Style | - |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 10V |
| Package / Case | 0201 (0603 Metric) |
| Temperature Coefficient | X5R |
| Size / Dimension | 0.023"" L x 0.012"" W (0.58mm x 0.30mm) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature | -55°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.013"" (0.33mm) |
| Failure Rate | - |
| Capacitance | 10000 pF |
