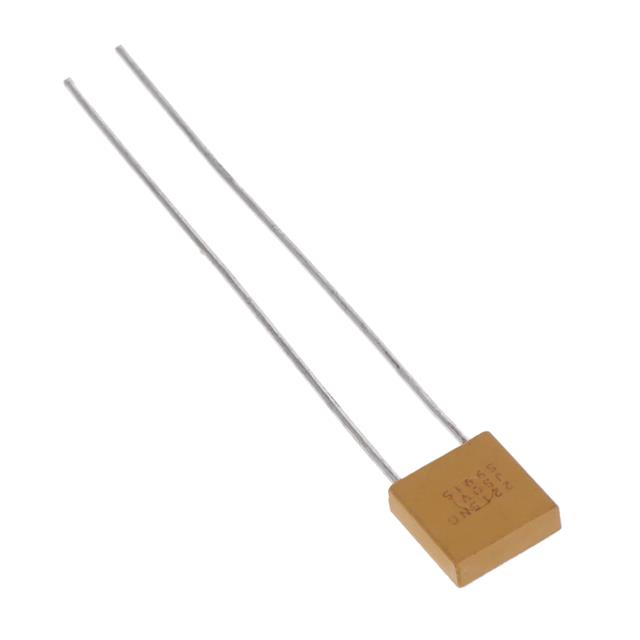

CCR06CG103FS

CAP CER RADIAL

Manufacturer: KYOCERA AVX

Categories: Ceramic Capacitors

Quality Control: Learn More

KYOCERA AVX CCR06CG103FS is a high-reliability, radial ceramic capacitor from the MIL-PRF-20 compliant CCR06 series. This component features a capacitance of 10000 pF with a tight tolerance of ±1% and a voltage rating of 50V. Engineered with a C0G/NP0 dielectric, it offers exceptional temperature stability and low dissipation factor, making it suitable for demanding applications where precision and reliability are paramount. The capacitor has a seated height of 0.300" (7.62mm) with a lead spacing of 0.200" (5.08mm) and straight leads for through-hole mounting. Operating across a temperature range of -55°C to 125°C, this capacitor is ideal for use in aerospace, defense, and other high-reliability electronic systems. The component is supplied in bulk packaging.

Additional Information

Series: Military, MIL-PRF-20, CCR06RoHS Status: RoHS non-compliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:
Technical Details:
Tolerance±1%
Lead StyleStraight
Features-
PackagingBulk
Voltage - Rated50V
Package / CaseRadial
Temperature CoefficientC0G, NP0
Size / Dimension0.290"" L x 0.090"" W (7.37mm x 2.29mm)
Mounting TypeThrough Hole
Operating Temperature-55°C ~ 125°C
ApplicationsHigh Reliability
Lead Spacing0.200"" (5.08mm)
Ratings-
Height - Seated (Max)0.300"" (7.62mm)
Thickness (Max)-
Failure RateS (0.001%)
Capacitance10000 pF
