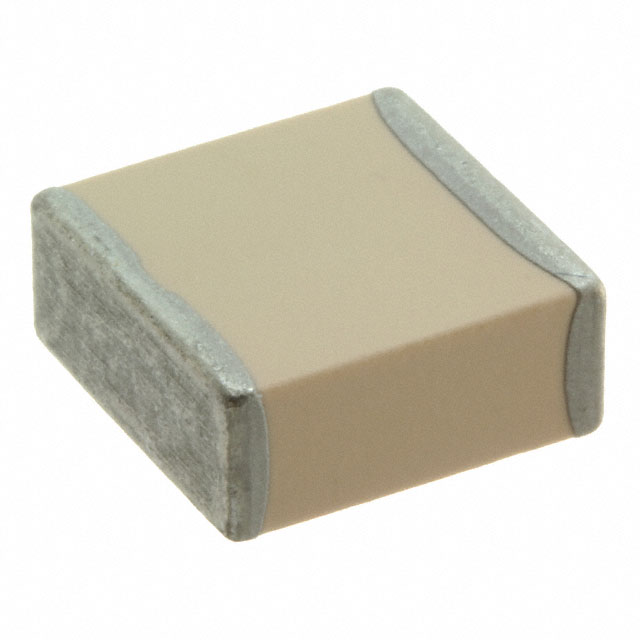

100E471JW2500XJ24

CAP CER 470PF 2.5KV P90 3838

Manufacturer: KYOCERA AVX

Categories: Ceramic Capacitors

Quality Control: Learn More

KYOCERA AVX 100E series ceramic capacitor, part number 100E471JW2500XJ24, offers 470 pF capacitance with a tight ±5% tolerance. This MLCC is rated for 2500V (2.5kV) and features a P90 temperature coefficient. Designed for demanding applications, it exhibits high Q, low loss, and low ESL characteristics. The capacitor is housed in a 3838 (9797 Metric) surface mount package with dimensions of 0.380" L x 0.380" W and a maximum thickness of 0.170". Operating across a temperature range of -55°C to 125°C, this component is suitable for RF, microwave, high-frequency, bypass, and decoupling applications.

Additional Information

Series: 100ERoHS Status: RoHS non-compliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:
Technical Details:
Tolerance±5%
Lead Style-
FeaturesHigh Q, Low Loss, Low ESL, High Voltage
PackagingTray
Voltage - Rated2500V (2.5kV)
Package / Case3838 (9797 Metric)
Temperature CoefficientP90
Size / Dimension0.380"" L x 0.380"" W (9.65mm x 9.65mm)
Mounting TypeSurface Mount, MLCC
Operating Temperature-55°C ~ 125°C
ApplicationsRF, Microwave, High Frequency, Bypass, Decoupling
Lead Spacing-
Ratings-
Height - Seated (Max)-
Thickness (Max)0.170"" (4.32mm)
Failure Rate-
Capacitance470 pF

Request a Quote

Name (required)

Phone (required)

Work Email (required)

Country (required)

Company Name (required)

CAPTCHA

Clients Also Buy
product image

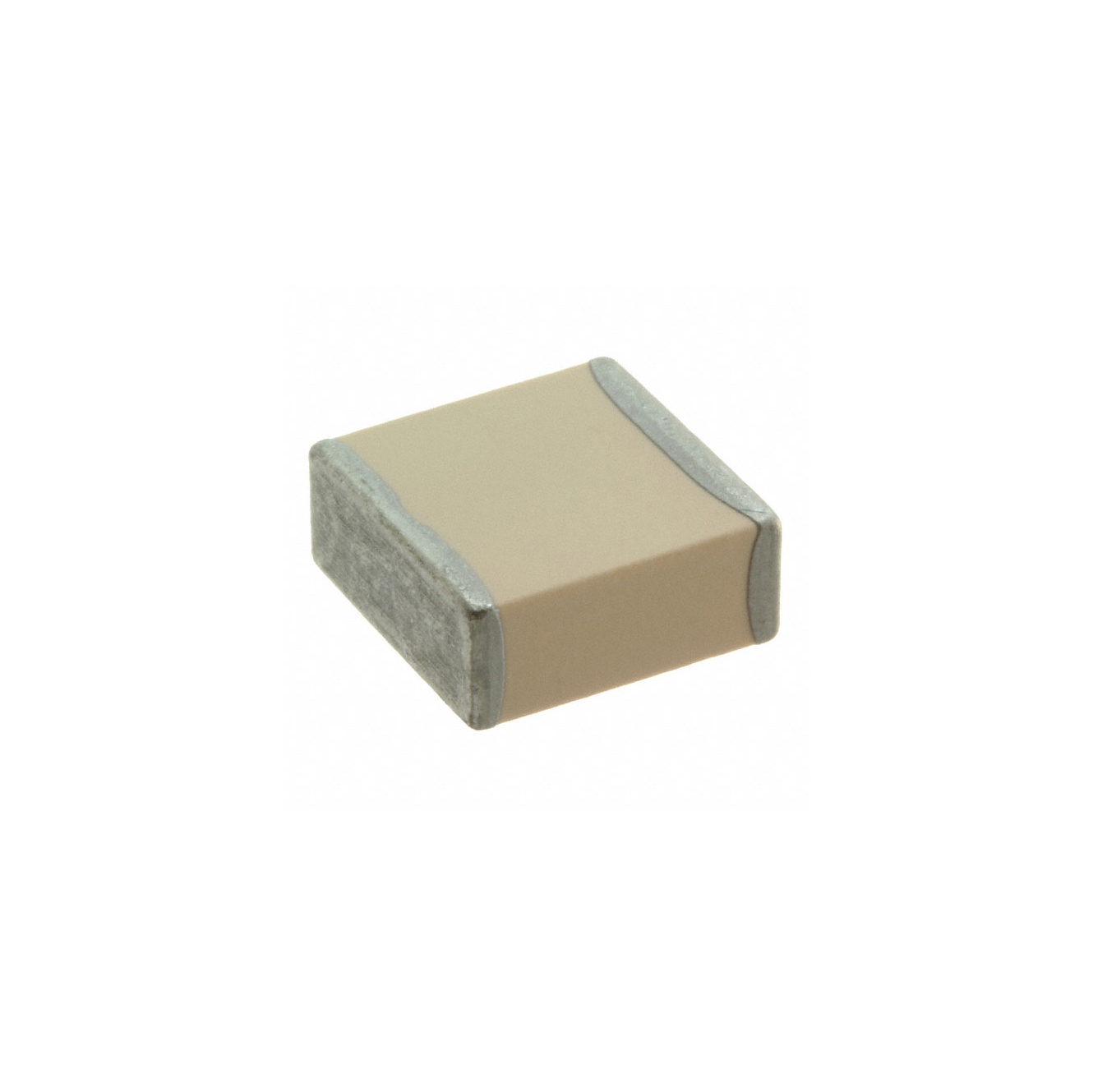

100E101GTN3600XJ24
