100C102JW1000XJ36

CAP CER 1000PF 1KV P90 2325

Manufacturer: KYOCERA AVX

Categories: Ceramic Capacitors

Quality Control: Learn More

KYOCERA AVX ATC 100C series ceramic capacitor, part number 100C102JW1000XJ36. This MLCC component offers 1000 pF capacitance with a tight ±5% tolerance and a 1000V (1kV) rating. Featuring a P90 temperature coefficient, it is designed for high-frequency applications including RF and microwave circuits, as well as bypass and decoupling functions. The capacitor exhibits high Q, low loss, and low ESL characteristics. It is housed in a 2325 (5864 Metric) surface-mount package, measuring 0.230" L x 0.250" W (5.84mm x 6.35mm) with a maximum thickness of 0.165" (4.19mm). Operating temperature range is -55°C to 125°C. Packaged in trays.

Additional Information

Series: ATC 100CRoHS Status: RoHS non-compliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:
Technical Details:
Tolerance±5%
Lead Style-
FeaturesHigh Q, Low Loss, Low ESL
PackagingTray
Voltage - Rated1000V (1kV)
Package / Case2325 (5864 Metric)
Temperature CoefficientP90
Size / Dimension0.230"" L x 0.250"" W (5.84mm x 6.35mm)
Mounting TypeSurface Mount, MLCC
Operating Temperature-55°C ~ 125°C
ApplicationsRF, Microwave, High Frequency, Bypass, Decoupling
Lead Spacing-
Ratings-
Height - Seated (Max)-
Thickness (Max)0.165"" (4.19mm)
Failure Rate-
Capacitance1000 pF

Request a Quote

Name (required)

Phone (required)

Work Email (required)

Country (required)

Company Name (required)

CAPTCHA

Clients Also Buy
product image

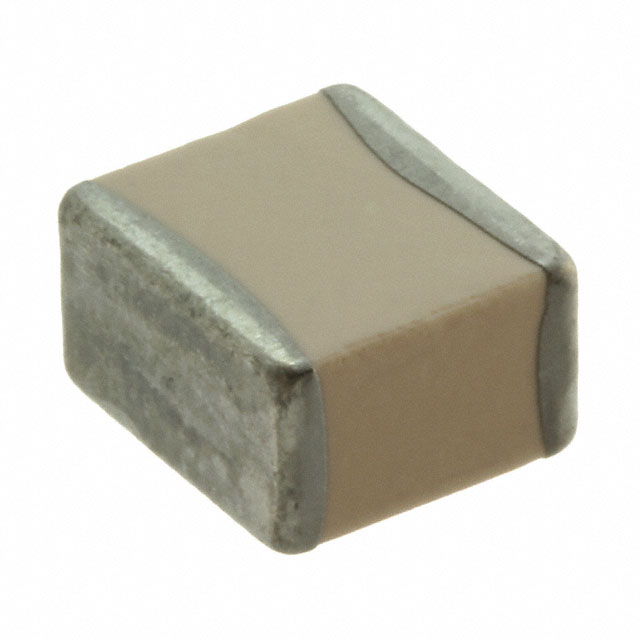

100C470JW2500XJ36
