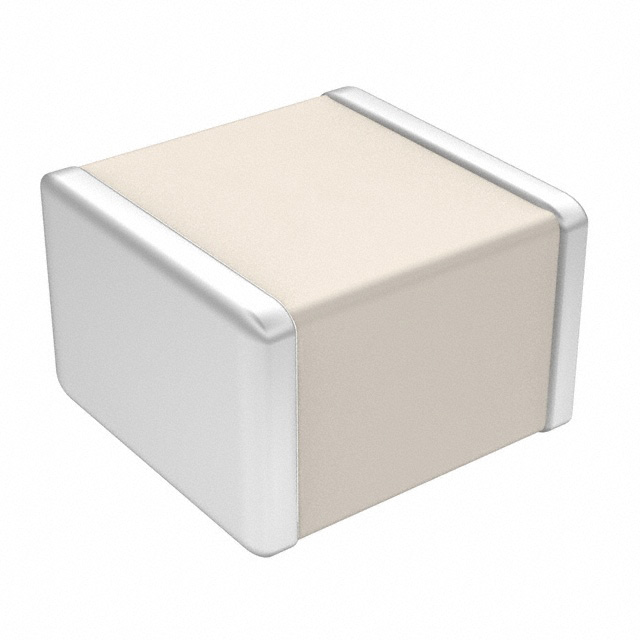

productimage

100B220JTN500XT1K

CAP CER 22PF 500V P90 1111

Manufacturer: KYOCERA AVX

Categories: Ceramic Capacitors

Quality Control: Learn More

The KYOCERA AVX ATC 100B Series 100B220JTN500XT1K is a surface-mount ceramic capacitor with a capacitance of 22 pF and a voltage rating of 500V. Featuring a P90 temperature coefficient, this component offers a ±5% tolerance. It is constructed using MLCC technology and housed in an 1111 (2828 Metric) package, measuring 0.110" x 0.110" (2.79mm x 2.79mm). This capacitor is designed for high-frequency applications, including RF and microwave circuits, and exhibits high Q, low loss, and low ESL. It operates within a temperature range of -55°C to 125°C and is supplied on tape and reel (TR). Applications include bypass and decoupling functions in demanding electronic systems.

Additional Information

Series: Porcelain Superchip® ATC 100BRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
Tolerance±5%
Lead Style-
FeaturesHigh Q, Low Loss, Low ESL
PackagingTape & Reel (TR)
Voltage - Rated500V
Package / Case1111 (2828 Metric)
Temperature CoefficientP90
Size / Dimension0.110"" L x 0.110"" W (2.79mm x 2.79mm)
Mounting TypeSurface Mount, MLCC
Operating Temperature-55°C ~ 125°C
ApplicationsRF, Microwave, High Frequency, Bypass, Decoupling
Lead Spacing-
Ratings-
Height - Seated (Max)-
Thickness (Max)0.102"" (2.59mm)
Failure Rate-
Capacitance22 pF
