C18BL103X-4UN-X0B

CAP CER 10000PF 500V 1210

Quality Control: Learn More

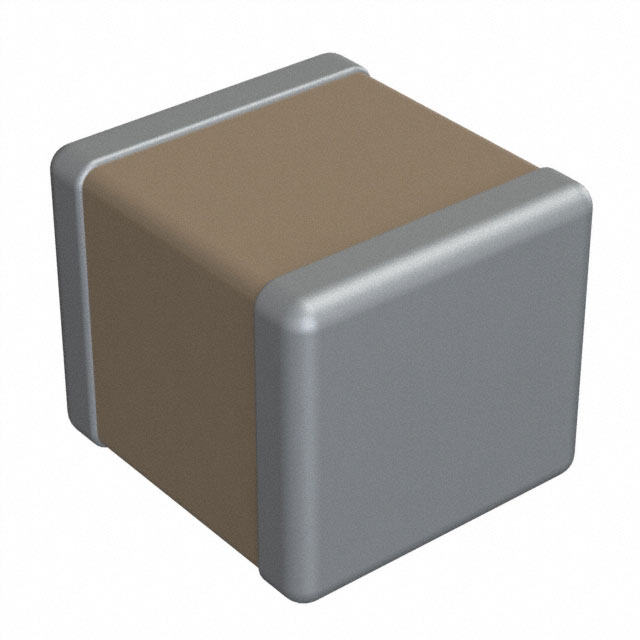

The Knowles Dielectric Labs C18BL103X-4UN-X0B is a surface-mount multilayer ceramic capacitor (MLCC) with a capacitance of 10000 pF and a voltage rating of 500V. This component, housed in a 1210 (3225 Metric) package, features high Q and low loss characteristics. It is designed for operation across a temperature range of -55°C to 125°C. The dimensions are 0.120 inches (3.05mm) in length and 0.110 inches (2.79mm) in width, with a maximum thickness of 0.100 inches (2.54mm). This capacitor is suitable for applications in RF, microwave, and high-frequency circuits. It is supplied in bulk packaging.

Additional Information

Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Bulk

Download Free CAD Model:

Technical Details:

Tolerance	-
Lead Style	-
Features	High Q, Low Loss
Packaging	Bulk
Voltage - Rated	500V
Package / Case	1210 (3225 Metric)
Temperature Coefficient	-
Size / Dimension	0.120"" L x 0.110"" W (3.05mm x 2.79mm)
Mounting Type	Surface Mount, MLCC
Operating Temperature	-55°C ~ 125°C
Applications	RF, Microwave, High Frequency
Lead Spacing	-
Ratings	-
Height - Seated (Max)	-
Thickness (Max)	0.100"" (2.54mm)
Failure Rate	-
Capacitance	10000 pF
