KXSS5-2057-FR
ACCEL 3G ANALOG/I2C/SPI 14LGAManufacturer: Kionix Inc.
Categories: Accelerometers
Quality Control: Learn More

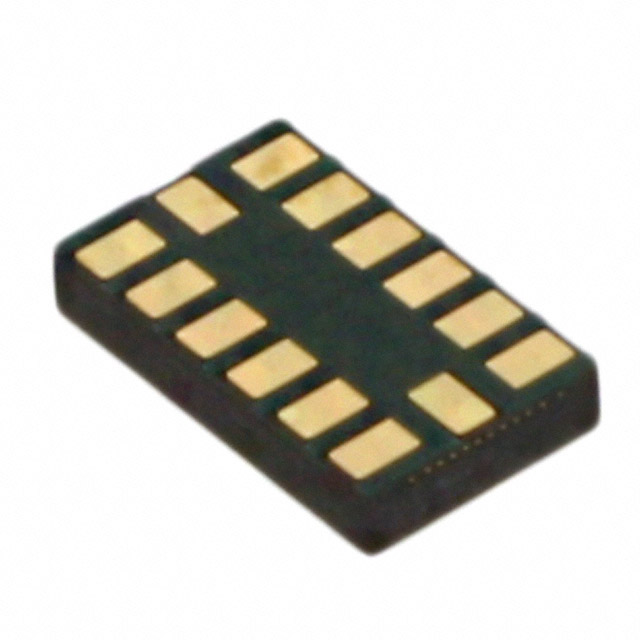

Kionix Inc. presents the KXSS5-2057-FR, a tri-axis accelerometer designed for high-performance motion sensing applications. This component features a selectable acceleration range of ±3g and offers a 1kHz bandwidth, configurable via adjustable bandwidth and selectable low-pass filtering. The KXSS5-2057-FR provides versatile output options, supporting both analog and digital interfaces including I2C and SPI. Its 14-LGA (3x5) package is suitable for surface mount applications, operating within a temperature range of -40°C to 85°C and a supply voltage of 1.8V to 3.6V. With a sensitivity of 440mV/g in analog output and 546 LSB/g for digital output, this accelerometer is well-suited for use in consumer electronics, industrial automation, and automotive systems requiring precise motion detection. The part is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Adjustable Bandwidth, Selectable Low Pass Filter |
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-VFLGA |
| Output Type | Analog, I2C, SPI |
| Mounting Type | Surface Mount |
| Type | Analog, Digital |
| Axis | X, Y, Z |
| Acceleration Range | ±3g |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.8V ~ 3.6V |
| Bandwidth | 1kHz |
| Supplier Device Package | 14-LGA (3x5) |
| Sensitivity (LSB/g) | 546 |
| Sensitivity (mV/g) | 440 |
