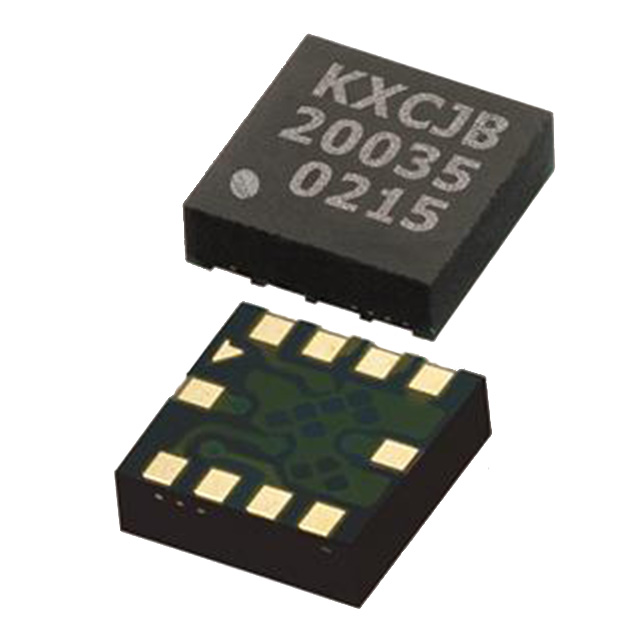

KXCJB-1041
LOW HEIGHT TRI-AXIS, USER SELECTManufacturer: Kionix Inc.
Categories: Accelerometers
Quality Control: Learn More
The Kionix Inc. KXCJB-1041 is a low-profile, tri-axis digital accelerometer designed for high-performance motion sensing applications. This component offers user-selectable acceleration ranges of ±2g, ±4g, and ±8g, providing flexibility across various measurement needs. With an 800Hz bandwidth, it delivers responsive data acquisition for dynamic environments. The KXCJB-1041 features an I2C output interface and is housed in a compact 10-LGA (3x3) surface-mount package, supplied on tape and reel. Its sensitivity varies from 1024 LSB/g at ±2g to 256 LSB/g at ±8g. Operating within a 1.8V to 3.6V supply range and an extended temperature range of -40°C to 85°C, this accelerometer is well-suited for use in consumer electronics, industrial control systems, and automotive applications where precise motion detection is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Selectable Scale |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-XFLGA |
| Output Type | I2C |
| Mounting Type | Surface Mount |
| Type | Digital |
| Axis | X, Y, Z |
| Acceleration Range | ±2g, 4g, 8g |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.8V ~ 3.6V |
| Bandwidth | 800Hz |
| Supplier Device Package | 10-LGA (3x3) |
| Sensitivity (LSB/g) | 1024 (±2g) ~ 256 (±8g) |
| Sensitivity (mV/g) | - |
