KXCJ9-1008-FR
ACCELEROMETER 2-8G I2C 10LGAManufacturer: Kionix Inc.
Categories: Accelerometers
Quality Control: Learn More

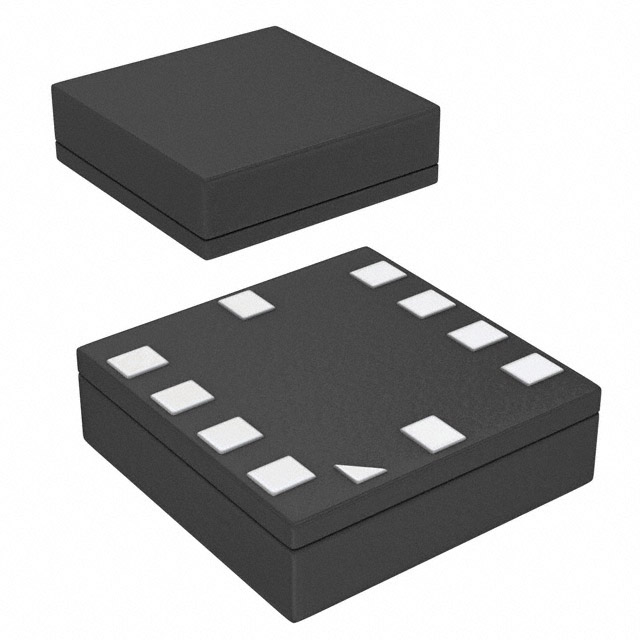

The Kionix Inc. KXCJ9-1008-FR is a digital accelerometer with X, Y, and Z axis sensing capabilities. This component offers selectable acceleration ranges of ±2g, ±4g, and ±8g, with a bandwidth from 0.39Hz to 800Hz. Featuring an I2C output interface, it supports adjustable bandwidth and selectable low-pass filtering. The KXCJ9-1008-FR utilizes a 10-LGA (3x3) surface-mount package and operates within a temperature range of -40°C to 85°C. Its sensitivity is 1024 LSB/g at the ±8g range. This device is commonly employed in consumer electronics, industrial control systems, and automotive applications. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Adjustable Bandwidth, Selectable Low Pass Filter |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFLGA |
| Output Type | I2C |
| Mounting Type | Surface Mount |
| Type | Digital |
| Axis | X, Y, Z |
| Acceleration Range | ±2g, 4g, 8g |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.71V ~ 3.6V |
| Bandwidth | 0.39Hz ~ 800Hz |
| Supplier Device Package | 10-LGA (3x3) |
| Sensitivity (LSB/g) | 1024 (±8g) |
| Sensitivity (mV/g) | - |
