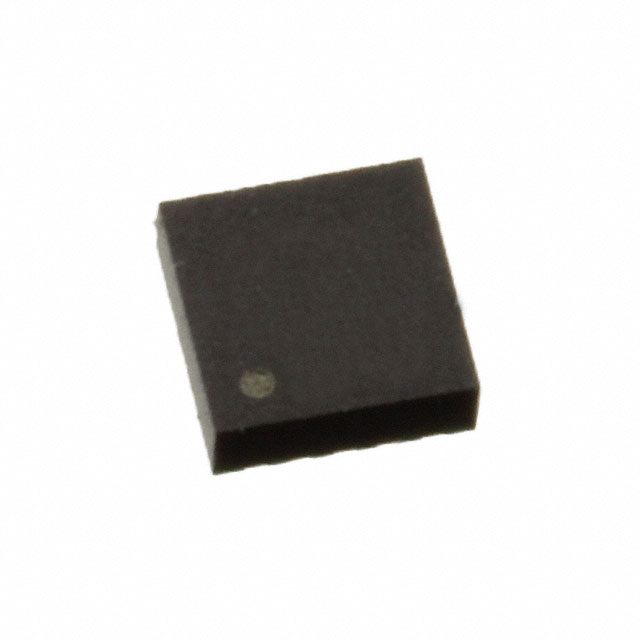

KX123-1039
ACCELEROMETER 2-8G I2C/SPI 16LGAManufacturer: Kionix Inc.
Categories: Accelerometers
Quality Control: Learn More
The Kionix KX123 is a three-axis digital accelerometer designed for precise motion sensing. This component offers selectable acceleration ranges of ±2g, ±4g, and ±8g, with corresponding sensitivities of 16384 LSB/g for ±2g and 4096 LSB/g for ±8g. Its adjustable bandwidth spans from 6.25Hz to 12.8kHz, allowing for customization to specific application requirements. Communication is facilitated via both I2C and SPI interfaces, providing flexibility in system integration. The KX123 features a 16-LGA (3x3) surface-mount package, suitable for demanding applications. Operating across a temperature range of -40°C to 85°C and requiring a supply voltage of 1.71V to 3.6V, this accelerometer is ideal for use in industrial, consumer electronics, and automotive control systems. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Adjustable Bandwidth, Selectable Scale |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VFLGA |
| Output Type | I2C, SPI |
| Mounting Type | Surface Mount |
| Type | Digital |
| Axis | X, Y, Z |
| Acceleration Range | ±2g, 4g, 8g |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.71V ~ 3.6V |
| Bandwidth | 6.25Hz ~ 12.8kHz |
| Supplier Device Package | 16-LGA (3x3) |
| Sensitivity (LSB/g) | 16384 (±2g) ~ 4096 (±8g) |
| Sensitivity (mV/g) | - |
