KX122-1037
ACCELEROMETER 2-8G I2C/SPI 12LGAManufacturer: Kionix Inc.
Categories: Accelerometers
Quality Control: Learn More

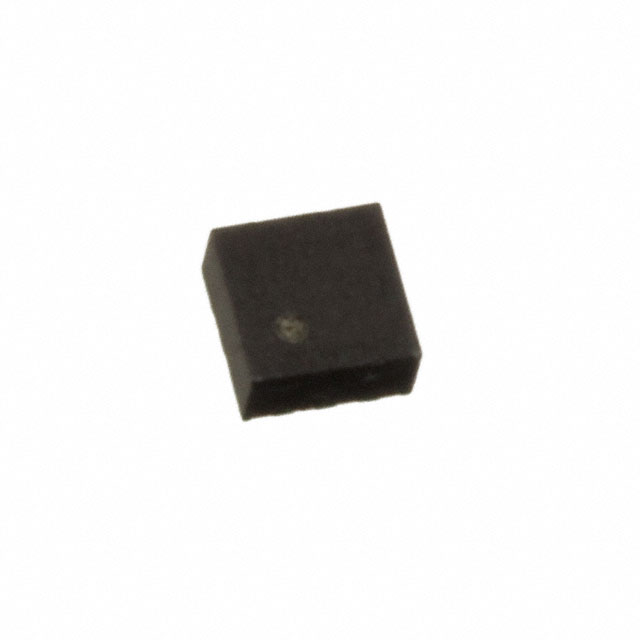

Kionix Inc. KX122-1037 is a digital accelerometer with X, Y, and Z axis sensing capabilities. This component offers selectable acceleration ranges of ±2g, ±4g, and ±8g, with corresponding sensitivities of 16384 LSB/g down to 4096 LSB/g. The adjustable bandwidth spans from 6.25Hz to 12.8kHz, providing flexibility for various application requirements. Communication is facilitated via I2C and SPI interfaces. The KX122-1037 is housed in a compact 12-LGA (2x2) surface-mount package, supplied on tape and reel. Operating across a temperature range of -40°C to 85°C and requiring a supply voltage of 1.71V to 3.6V, this accelerometer is well-suited for applications in consumer electronics, industrial automation, and IoT devices demanding precise motion detection.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Adjustable Bandwidth, Selectable Scale |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-VFLGA |
| Output Type | I2C, SPI |
| Mounting Type | Surface Mount |
| Type | Digital |
| Axis | X, Y, Z |
| Acceleration Range | ±2g, 4g, 8g |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.71V ~ 3.6V |
| Bandwidth | 6.25Hz ~ 12.8kHz |
| Supplier Device Package | 12-LGA (2x2) |
| Sensitivity (LSB/g) | 16384 (±2g) ~ 4096 (±8g) |
| Sensitivity (mV/g) | - |
