WP793SRD/D
LED RED DIFFUSED 8MM ROUND T/HManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

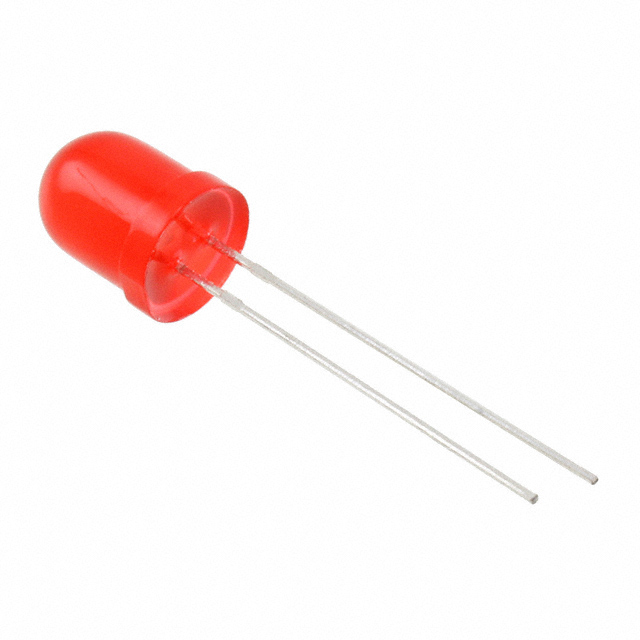

Kingbright WP793SRD-D is a red diffused 8mm round through-hole LED, emitting at a dominant wavelength of 640nm with a peak wavelength of 655nm. This discrete LED operates with a typical forward voltage of 1.85V at a test current of 20mA, achieving a luminous intensity of 140mcd. The diffused lens provides a wide viewing angle of 30°, ensuring clear indication across various orientations. Its 8mm diameter and 11.00mm maximum height, coupled with a standard radial package for through-hole mounting, make it suitable for applications in industrial control, consumer electronics, and automotive systems requiring reliable visual feedback. Supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | 8.00mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 140mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 30° |
| Height (Max) | 11.00mm |
| Wavelength - Peak | 655nm |
| Wavelength - Dominant | 640nm |
| Supplier Device Package | 8mm Round |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 8.00mm Dia |
