WP7113YD14V
LED YELLOW DIFFUSED T-1 3/4 T/HManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

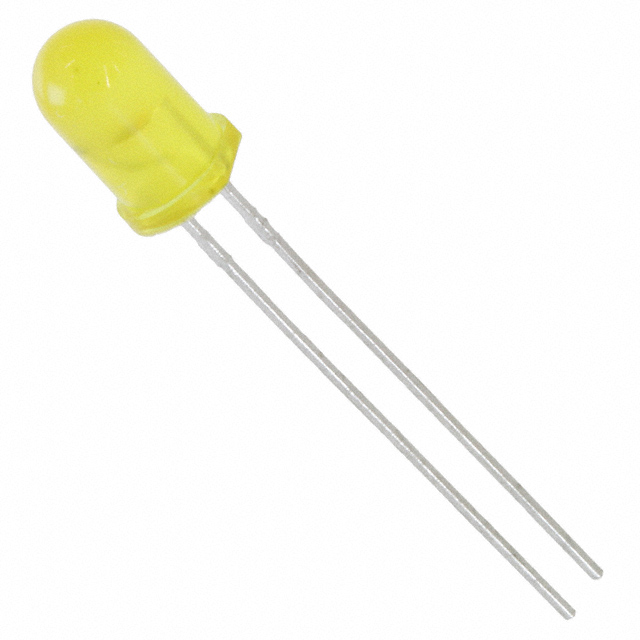

Kingbright WP7113YD14V is a yellow diffused, through-hole LED with a distinct 588nm dominant wavelength and 590nm peak wavelength. This T-1 3/4 package features a 5mm diameter lens with a domed top, providing a 30° viewing angle. Rated for 14V forward voltage, it typically draws 10.5mA at test conditions, producing a luminous intensity of 20mcd. The diffused lens ensures uniform light distribution, making it suitable for general indication applications across various industries including industrial automation, consumer electronics, and automotive systems. The radial package is supplied in bulk.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Yellow |
| Size / Dimension | 5.00mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 20mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 14V |
| Lens Color | Yellow |
| Current - Test | 10.5mA |
| Viewing Angle | 30° |
| Height (Max) | 8.60mm |
| Wavelength - Peak | 590nm |
| Wavelength - Dominant | 588nm |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
