WP7113WG1C
LED GREEN CLEAR T-1 3/4 T/HManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

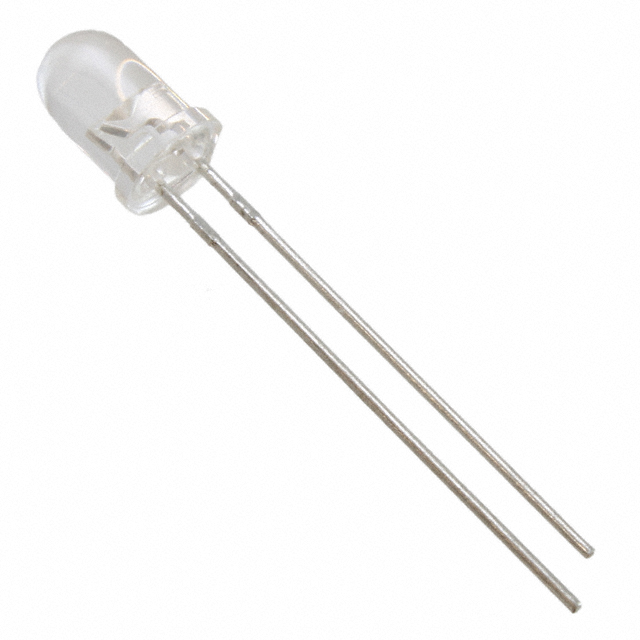

Kingbright WP7113WG1C is a green, 505nm wavelength LED, designed for through-hole mounting. This discrete indicator features a clear, colorless lens with a domed top, measuring 5mm in diameter (T-1 3/4 package). It offers a typical forward voltage of 2.9V and a forward current of 20mA, producing a luminous intensity of 12000mcd. The viewing angle is 20 degrees. This component is suitable for various industrial applications requiring reliable visual indication, including automotive, industrial automation, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | 5.00mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 12000mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 20° |
| Height (Max) | 8.60mm |
| Wavelength - Peak | 500nm |
| Wavelength - Dominant | 505nm |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
