WP7113SRD14V
LED RED DIFFUSED T-1 3/4 T/HManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

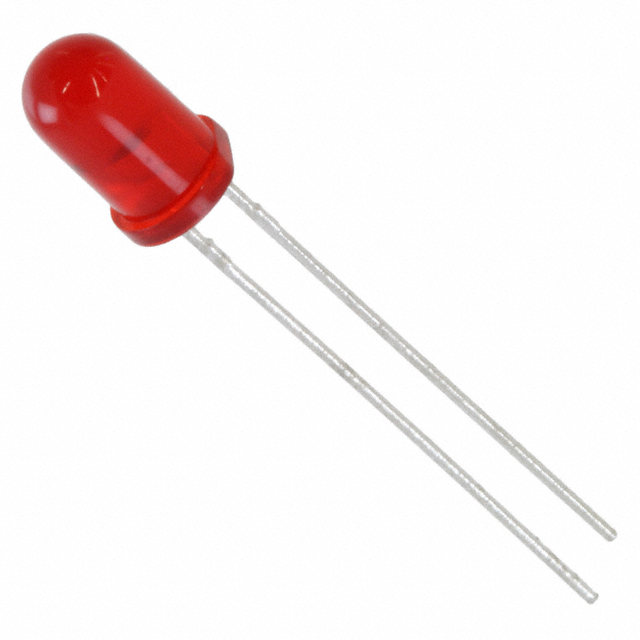

Kingbright WP7113SRD14V is a red diffused T-1 3/4 through-hole LED designed for indication applications. This discrete component operates with a typical forward voltage of 14V and features a dominant wavelength of 640nm with a peak wavelength of 655nm. The LED provides a luminous intensity of 100mcd at a test current of 10.5mA, with a 30° viewing angle. Its diffused lens, red in color, ensures a uniform light distribution. The component is housed in a radial package and is supplied in bulk packaging. This component is commonly utilized in industrial automation, consumer electronics, and control panel indicators.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | 5.00mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 100mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 14V |
| Lens Color | Red |
| Current - Test | 10.5mA |
| Viewing Angle | 30° |
| Height (Max) | 8.60mm |
| Wavelength - Peak | 655nm |
| Wavelength - Dominant | 640nm |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
