WP7113SGD14V
LED GREEN DIFFUSED T-1 3/4 T/HManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

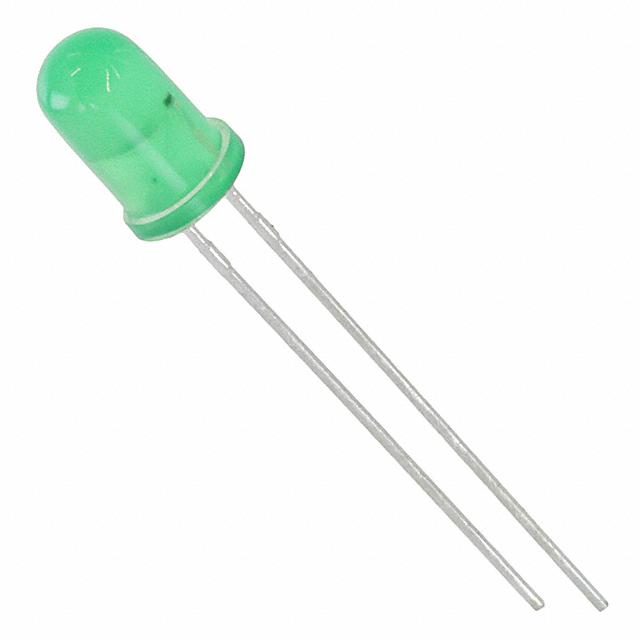

Kingbright's WP7113SGD14V is a Green diffused T-1 3/4 through-hole LED with a standard radial package. This discrete indicator component operates with a typical forward voltage of 14V and a test current of 10.5mA, yielding a luminous intensity of 22mcd. The dominant wavelength is 568nm, with a peak wavelength of 565nm. The diffused lens offers a wide 30° viewing angle. This component is commonly utilized in industrial automation, consumer electronics, and general signaling applications where reliable visual indication is required. The T-1 3/4 package measures 5mm in diameter with a maximum height of 8.60mm.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | 5.00mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 22mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 14V |
| Lens Color | Green |
| Current - Test | 10.5mA |
| Viewing Angle | 30° |
| Height (Max) | 8.60mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | 568nm |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
