WP7113PBC/A
LED BLUE CLEAR T-1 3/4 T/HManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

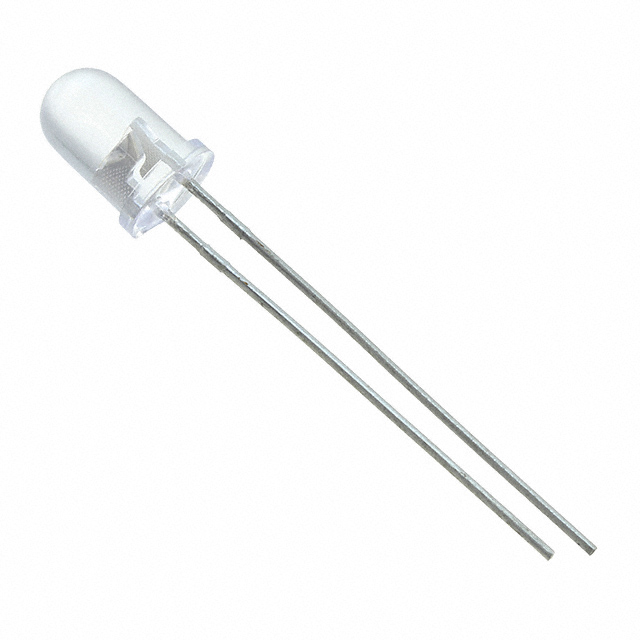

Kingbright WP7113PBC-A is a through-hole mounted blue LED with a dominant wavelength of 470nm and peak wavelength of 468nm. This T-1 3/4 package features a clear, colorless lens with a domed top, providing a viewing angle of 16 degrees. The component exhibits a typical forward voltage of 3.2V and a luminous intensity of 1600mcd at a test current of 20mA. Its radial package and 5mm diameter make it suitable for various general indication applications across industries such as industrial automation, consumer electronics, and automotive. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Blue |
| Size / Dimension | 5.00mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 1600mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 16° |
| Height (Max) | 8.60mm |
| Wavelength - Peak | 468nm |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
