WP710A10SRD/F
LED RED DIFFUSED T-1 T/HManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

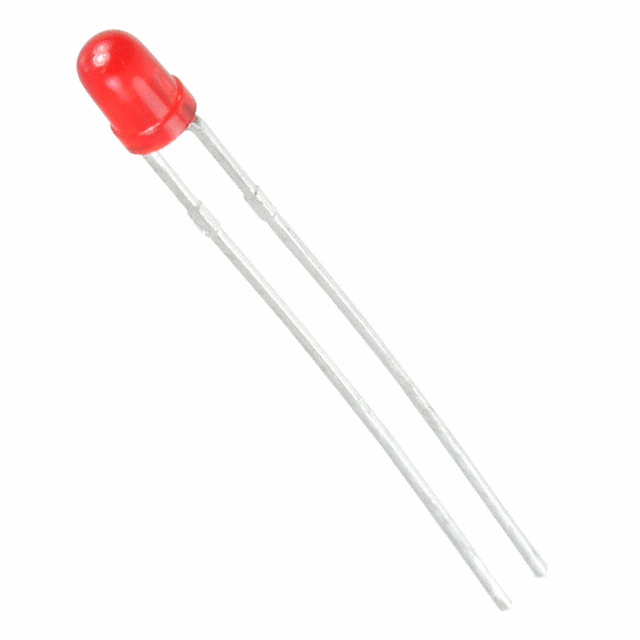

Kingbright WP710A10SRD-F is a red diffused T-1 through-hole LED designed for reliable indication. This discrete component emits light at a dominant wavelength of 640nm with a peak wavelength of 655nm. It features a 3mm T-1 package with a round, domed top lens, providing a diffused light output. The forward voltage (Vf) is typically 1.85V, with a standard forward current of 20mA, yielding a millicandela rating of 160mcd. The viewing angle is 40 degrees. This component is suitable for applications in industrial automation, consumer electronics, and general signage where clear visual feedback is required.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | 2.90mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 160mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 40° |
| Height (Max) | 5.90mm |
| Wavelength - Peak | 655nm |
| Wavelength - Dominant | 640nm |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
