WP710A10SRD/E
LED RED DIFFUSED T-1 T/HManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

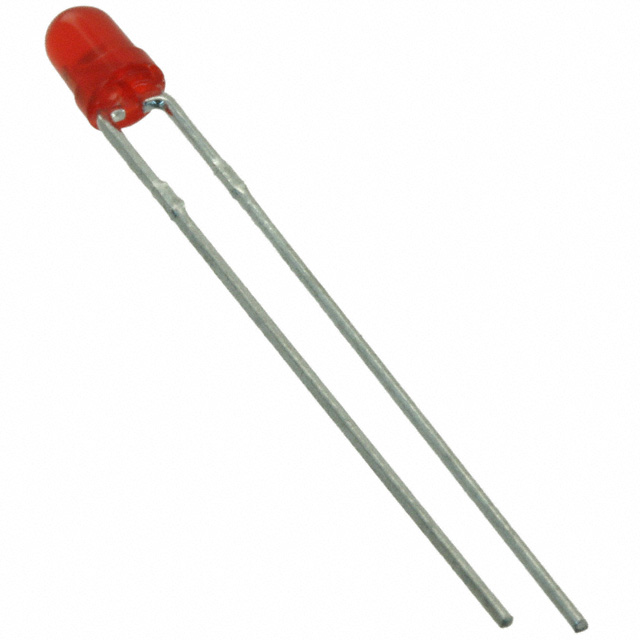

Kingbright WP710A10SRD-E is a through-hole mounted red diffused T-1 LED designed for discrete indication applications. This component features a forward voltage of 1.85V (typical) and operates at a test current of 20mA, producing a luminous intensity of 150mcd. The dominant wavelength is 640nm, with a peak wavelength of 655nm. The LED has a 40° viewing angle and a diffused lens for broad illumination. Its compact radial package measures 2.90mm in diameter with a maximum height of 5.90mm. This component is commonly utilized in industrial automation, consumer electronics, and automotive systems for status indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | 2.90mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 150mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 40° |
| Height (Max) | 5.90mm |
| Wavelength - Peak | 655nm |
| Wavelength - Dominant | 640nm |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
