WP710A10SRD/D
LED RED DIFFUSED T-1 T/HManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

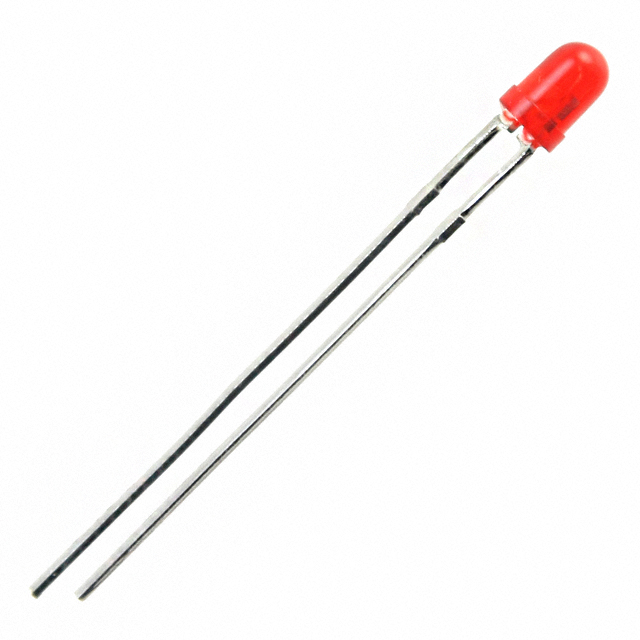

Kingbright WP710A10SRD-D is a red diffused T-1 through-hole LED designed for discrete indication applications. This component features a dominant wavelength of 640nm and a peak wavelength of 655nm, with a typical forward voltage of 1.85V at 20mA. The diffused lens provides a wide viewing angle of 40°, ensuring clear visibility. Its millicandela rating is 140mcd. This LED is suitable for applications in consumer electronics, industrial control systems, and automotive signaling. The T-1 package with radial leads facilitates easy mounting on PCBs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | 2.90mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 140mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 40° |
| Height (Max) | 5.90mm |
| Wavelength - Peak | 655nm |
| Wavelength - Dominant | 640nm |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
