WP710A10SRC/E
LED RED CLEAR T-1 T/HManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

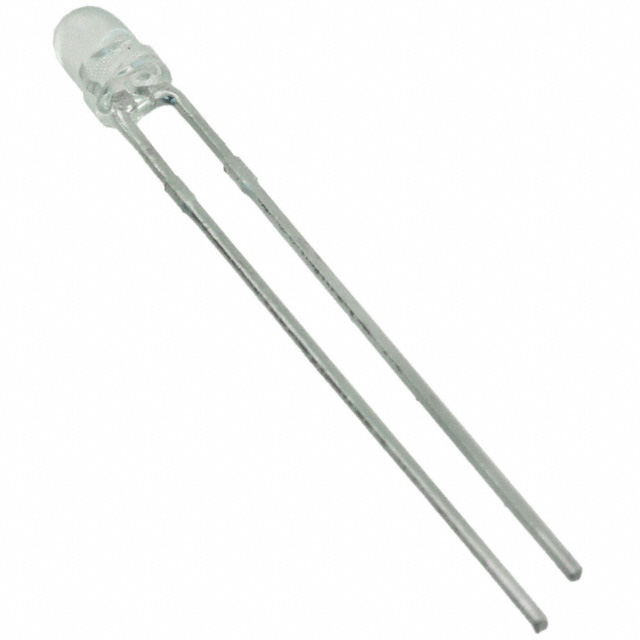

Kingbright WP710A10SRC-E is a red, through-hole radial LED designed for indication applications. This discrete component features a clear, colorless lens with a domed top, measuring 3mm (T-1) in diameter. It operates with a typical forward voltage of 1.85V and a test current of 20mA, achieving a luminous intensity of 900mcd. The dominant wavelength is 640nm, with a peak wavelength of 660nm. The viewing angle is 34°. This component is commonly found in industrial automation, consumer electronics, and automotive systems. The Kingbright WP710A10SRC-E is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | 2.90mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 900mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 34° |
| Height (Max) | 5.90mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | 640nm |
| Supplier Device Package | T-1 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
