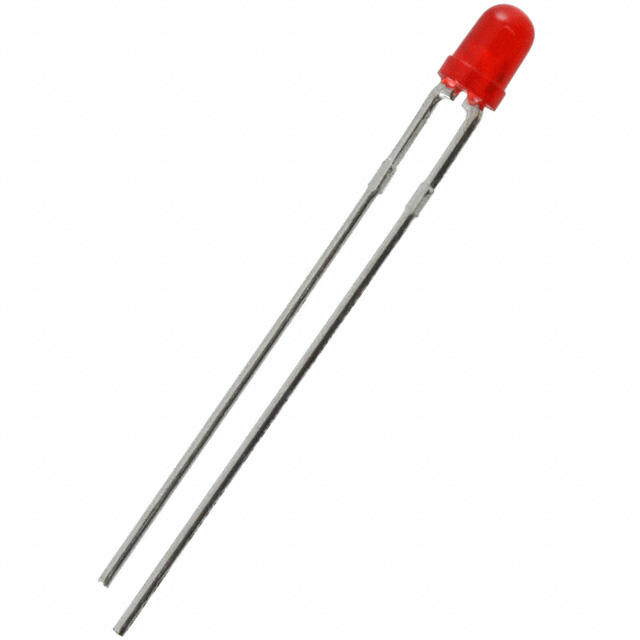

WP710A10LSRD
LED RED DIFFUSED T-1 T/HManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More
Kingbright WP710A10LSRD is a red diffused T-1 through-hole LED designed for indication applications. This discrete component features a 640nm dominant wavelength with a peak wavelength of 655nm, emitting a luminous intensity of 6mcd at 2mA test current. The LED operates with a typical forward voltage of 1.65V and has a viewing angle of 40 degrees. Its diffused lens ensures uniform light distribution. The component is supplied in bulk packaging and its T-1 radial package has a diameter of 2.90mm with a maximum height of 5.90mm. This component is commonly utilized in industrial automation, consumer electronics, and medical devices for status indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | 2.90mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 6mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.65V |
| Lens Color | Red |
| Current - Test | 2mA |
| Viewing Angle | 40° |
| Height (Max) | 5.90mm |
| Wavelength - Peak | 655nm |
| Wavelength - Dominant | 640nm |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
