WP7104QBC/D
LED BLUE CLEAR T-1 T/HManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

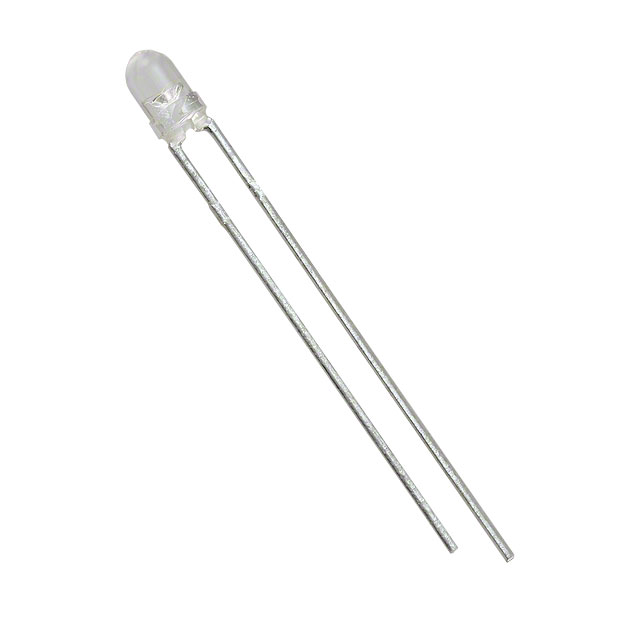

Kingbright WP7104QBC-D is a blue through-hole LED with a nominal forward voltage of 3.3V and a dominant wavelength of 470nm. This T-1 package LED features a clear, colorless lens with a domed top, providing a 3mm diameter and an ~5.90mm maximum height. It delivers a typical luminous intensity of 1500mcd at a 20mA test current, with a narrow 20° viewing angle. This discrete component is suitable for indication applications across various industries including industrial automation, automotive, and consumer electronics. The component comes in Bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Blue |
| Size / Dimension | 2.90mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 1500mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 20° |
| Height (Max) | 5.90mm |
| Wavelength - Peak | 468nm |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | T-1 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
