WP59SRSGW/CC
LED GRN/RED DIFFUSED T-1 3/4 T/HManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

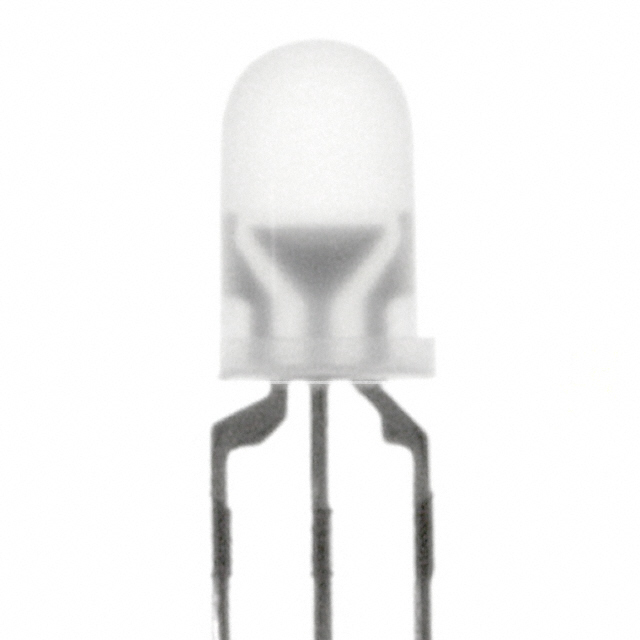

Kingbright WP59SRSGW-CC is a through-hole dual-color LED with a common cathode configuration. This T-1 3/4 package features diffused lenses and a domed top, providing a 60° viewing angle. The device emits green light at a dominant wavelength of 568nm (peak 565nm) with a luminous intensity of 50mcd at 20mA, and red light at a dominant wavelength of 640nm (peak 660nm) with a luminous intensity of 220mcd at 20mA. Forward voltage for the green LED is 2.2V (typ), and for the red LED is 1.85V (typ). This component is suitable for various indication applications across industries such as consumer electronics, industrial automation, and telecommunications. The radial package with 3 leads offers robust mounting solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial - 3 Leads |
| Color | Green, Red |
| Size / Dimension | 5.00mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 50mcd Green, 220mcd Red |
| Configuration | Common Cathode |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 1.85V Red |
| Lens Color | White |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 60° |
| Height (Max) | 11.35mm |
| Wavelength - Peak | 565nm Green, 660nm Red |
| Wavelength - Dominant | 568nm Green, 640nm Red |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
