WP56BSRD/B
LED RED DIFFUSED T-1 3/4 T/HManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

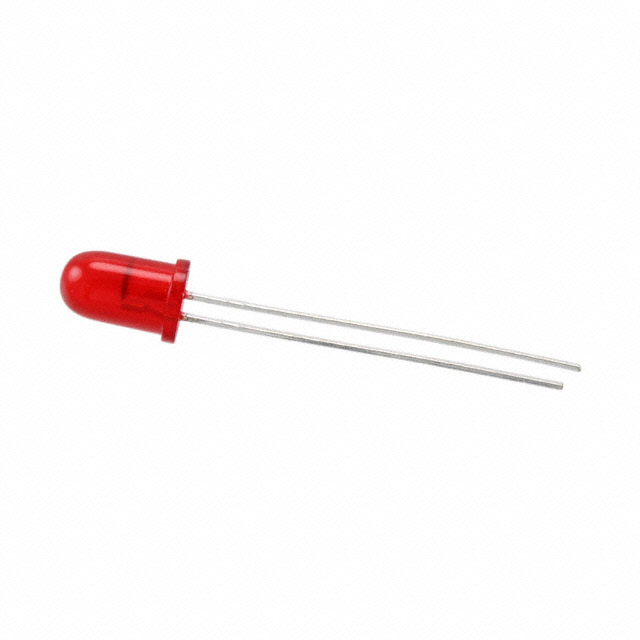

Kingbright WP56BSRD-B is a red diffused T-1 3/4 through-hole LED. This discrete component features a 640nm dominant wavelength and 655nm peak wavelength, providing a typical forward voltage of 14V. The LED offers a luminous intensity of 70mcd and a 60° viewing angle. Its diffused lens style ensures a broad light distribution. Designed for indication purposes, this component is commonly found in industrial automation, consumer electronics, and medical devices. The T-1 3/4 (5mm) radial package is suitable for through-hole mounting.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Flashing |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | 5.00mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 70mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 14V |
| Lens Color | Red |
| Current - Test | - |
| Viewing Angle | 60° |
| Height (Max) | 8.60mm |
| Wavelength - Peak | 655nm |
| Wavelength - Dominant | 640nm |
| Supplier Device Package | T-1 3/4 (5mm) |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
Request a Quote
