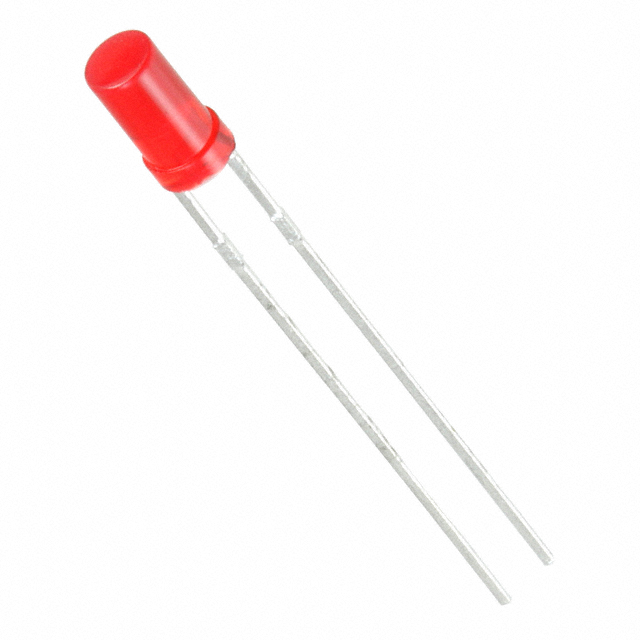

WP424SRDT
LED RED DIFFUSED T-1 T/HManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More
Kingbright WP424SRDT is a red diffused T-1 through-hole LED with a peak wavelength of 655nm and a dominant wavelength of 640nm. This discrete indicator component operates with a typical forward voltage of 1.85V and a test current of 20mA, achieving a luminous intensity of 20mcd. The lens is red, diffused, and has a T-1 size with a round, flat-top profile. It features a wide viewing angle of 100 degrees. The component is supplied in bulk packaging and is suitable for general indication applications in the industrial and consumer electronics sectors. The radial package facilitates through-hole mounting.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | 3.00mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 20mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 100° |
| Height (Max) | 6.00mm |
| Wavelength - Peak | 655nm |
| Wavelength - Dominant | 640nm |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Flat Top |
| Lens Size | 3mm, T-1 |
