WP424HDT

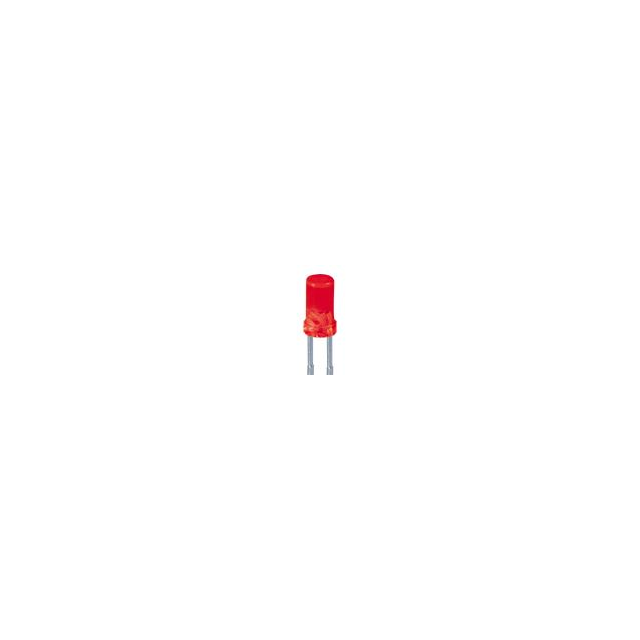

LED RED DIFFUSED T-1 T/HManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More
Kingbright WP424HDT discrete LED, a T-1 package with a 3mm diameter, offers red diffused illumination. This through-hole mounted component features a standard configuration with a peak wavelength of 700nm and a dominant wavelength of 635nm. The forward voltage is typically 2.25V, with a test current of 20mA yielding a millicandela rating of 0.6mcd. Its diffused lens style and 100° viewing angle make it suitable for various indication applications across industrial, automotive, and consumer electronics sectors. Supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | 3.00mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 0.6mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.25V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 100° |
| Height (Max) | 6.00mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | 635nm |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Flat Top |
| Lens Size | 3mm, T-1 |
