WP4060SRD
LED RED DIFFUSED RADIAL LEAD T/HManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

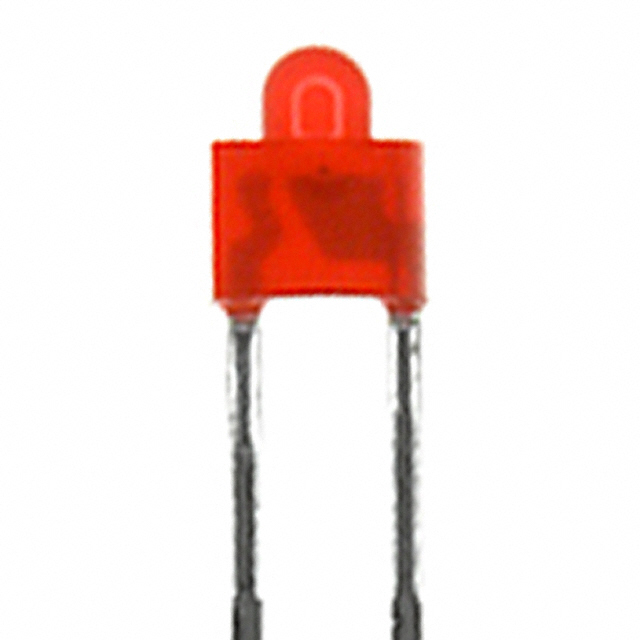

Kingbright WP4060SRD is a red, diffused, through-hole LED with a 640nm dominant wavelength and 655nm peak wavelength. This discrete indicator component operates with a typical forward voltage of 1.85V and a test current of 20mA, producing a millicandela rating of 80mcd. The LED features a red diffused lens with a 1.80mm diameter and a domed top, providing a 70° viewing angle. Its dimensions are 3.30mm L x 2.40mm W with a maximum height of 4.10mm. The radial lead package is supplied in bulk. This component is suitable for general indication applications across various industrial sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | 3.30mm L x 2.40mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | 80mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 70° |
| Height (Max) | 4.10mm |
| Wavelength - Peak | 655nm |
| Wavelength - Dominant | 640nm |
| Supplier Device Package | Radial Lead |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 1.80mm Dia |
