WP3A8HD
LED RED DIFFUSED T-1 T/HManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

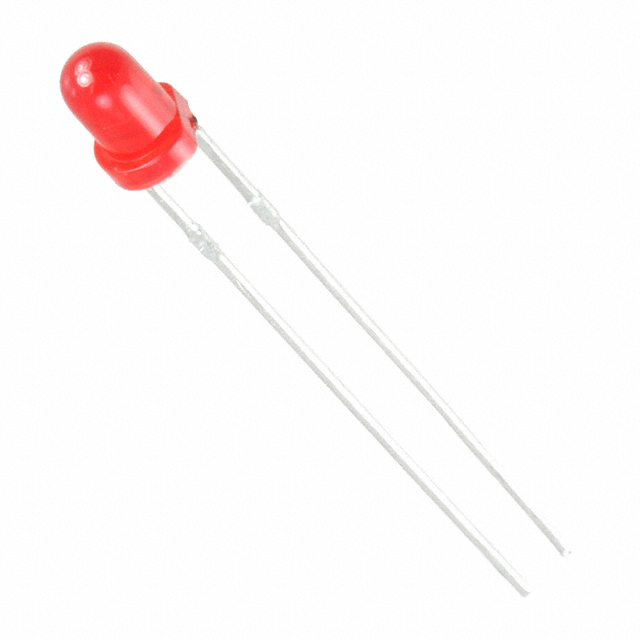

Kingbright WP3A8HD is a red diffused T-1 through-hole LED designed for general indication applications. This discrete component features a 635nm dominant wavelength and a peak wavelength of 700nm, producing a red light output. With a typical forward voltage of 2.25V and a test current of 20mA, it achieves a millicandela rating of 2.5mcd. The LED has a 50° viewing angle and a diffused, round, domed top lens measuring 3mm in diameter. Its radial package and through-hole mounting are suitable for various PCB assemblies. This component is commonly found in industrial automation and consumer electronics for status indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | 3.00mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 2.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.25V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 50° |
| Height (Max) | 5.00mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | 635nm |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
