WP3A10HD
LED RED DIFFUSED T-1 T/HManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

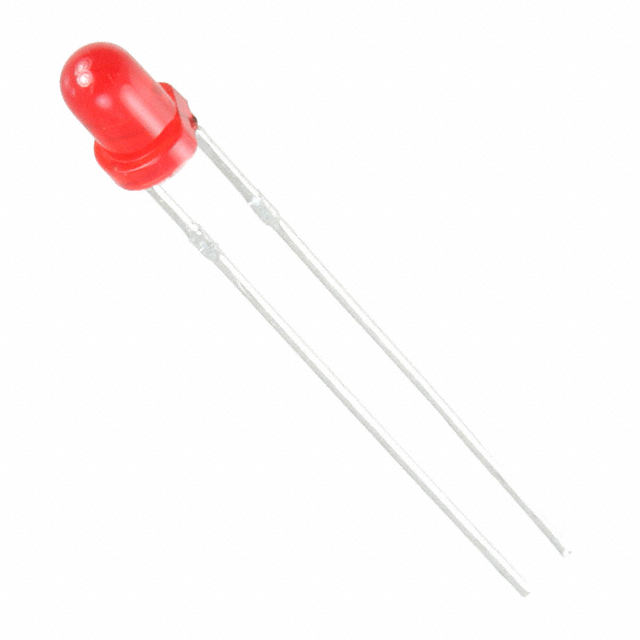

Kingbright WP3A10HD is a red diffused T-1 through-hole LED component. Featuring a dominant wavelength of 635nm and a peak wavelength of 700nm, this device provides clear visual indication. The typical forward voltage is 2.25V at a test current of 20mA, producing a millicandela rating of 1.8mcd. The LED has a diffused lens with a round, domed top and a lens color matching its red emitted light. The viewing angle is 60°, suitable for general indication applications. This component is commonly utilized in industrial automation, consumer electronics, and medical equipment for status signaling and visual feedback. The Radial package is supplied in Bulk.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | 3.00mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 1.8mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.25V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 60° |
| Height (Max) | 5.00mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | 635nm |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
