WP1503SRC/F
LED RED CLEAR T-1 3/4 T/HManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More
Kingbright WP1503SRC-F is a T-1 3/4 through-hole LED with a dominant wavelength of 640nm and a peak wavelength of 660nm. This discrete red LED features a clear, colorless lens with a domed top, providing a viewing angle of 30 degrees. The forward voltage (Vf) is typically 1.85V, and it achieves a high luminous intensity of 5200mcd at a test current of 20mA. Its robust construction and specifications make it suitable for indication applications across various industries, including industrial automation, consumer electronics, and automotive systems. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | 5.00mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 5200mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 30° |
| Height (Max) | 8.60mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | 640nm |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
Request a Quote
Clients Also Buy
WP7113SRSGW
LED GRN/RED DIFFUSED T-1 3/4 T/H

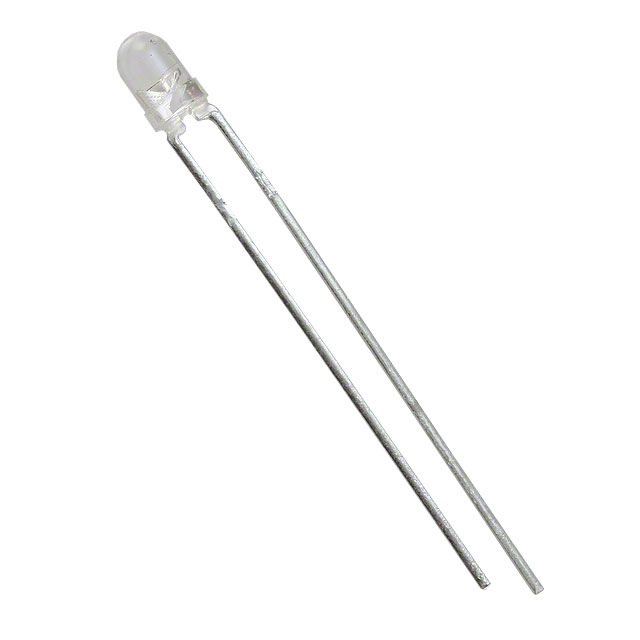

WP7104QBC/G
